| 符号 | 数值 | 说明 |
|---|---|---|
| ≈m | 12.253 kg | 重量 |
| nG | 1.900 1/min | 极限转速 |
| nϑr | 2.400 1/min | 参考转速 |
+82 70-7954-6116
info@kovar.kr
技术支持时间：周一至周五 9:00–18:00（韩国时间）
FAG

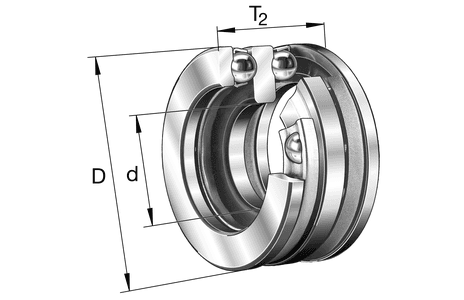

FAG 52232-MP Axial Deep Groove Ball Bearings 推力球轴承
Axial Deep Groove Ball Bearings
Thrust Ball Bearing
询价
预计配送日期：2026.06.16（韩国库存）
有库存预计配送日期：2026.06.16（韩国库存）
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
- Category
- 推力球轴承
- Width
- 90 mm mm
Overview
FAG 52232-MP Thrust Ball Bearing is designed specifically to support axial load with a simple, low-friction structure. It is suitable for vertical shafts, rotary tables, jacks, and low- to medium-speed equipment where axial load control is more important than radial load capacity.
The bearing consists of shaft washer, housing washer, and ball-and-cage assembly. Single-direction types support axial load in one direction, while double-direction types support axial load in both directions; they are not intended for radial loading.
Key features
- Dedicated axial load support
- Simple structure with low friction
- Single- and double-direction designs
- Separable components for easy mounting and inspection
Typical applications
- Vertical motors and pumps
- Rotary tables
- Screw jacks and lifting devices
- Low- to medium-speed axial support positions
Selection guidance
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
| 符号 | 数值 | 说明 |
|---|---|---|
| B | 90 mm | 宽度 |
| r1, 2 min | 1,5 mm | 最小倒角尺寸 |
| 符号 | 数值 | 说明 |
|---|---|---|
| da max | 160 mm | Max. shoulder diameter for mounting, inner ring |
| Da max | 186 mm | Max. shoulder diameter for mounting, housing |
| 符号 | 数值 | 说明 |
|---|---|---|
| Tmin | -30 °C | 最低工作温度 |
| Tmax | 150 °C | 最高工作温度 |
| 代码 | 说明 |
|---|---|
| MP | Cage |
| PN | Tolerance class |
