  1. 首页
  2. /轴承
  3. /FAG 53207 Axial Deep Groove Ball Bearings
FAG FAG 53207 Axial Deep Groove Ball Bearings
  • FAG FAG 53207 Axial Deep Groove Ball Bearings

FAG

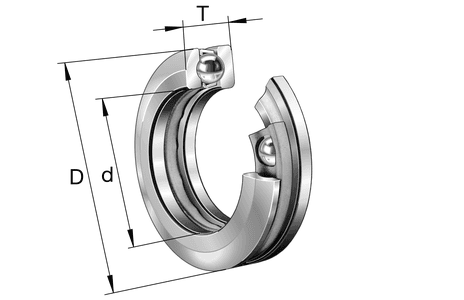

FAG 53207 Axial Deep Groove Ball Bearings 推力球轴承 48 × 65 × 19.9 mm

Axial Deep Groove Ball Bearings

Thrust Ball Bearing

CN¥183.60起

不含税
fag:53207CN¥183.60
规格价格数量
fag:53207CN¥183.60
有库存预计配送日期:2026.06.15(韩国库存)

显示价格为 EX-WORKS(国际贸易术语 2020)韩国首尔。运费、关税及保险由买方承担。

DX6NH783W2
Category
推力球轴承
Bore
48 mm mm
Outer Ø
65 mm mm
Width
19.9 mm mm

Overview

FAG 53207 Thrust Ball Bearing is designed specifically to support axial load with a simple, low-friction structure. It is suitable for vertical shafts, rotary tables, jacks, and low- to medium-speed equipment where axial load control is more important than radial load capacity.

The bearing consists of shaft washer, housing washer, and ball-and-cage assembly. Single-direction types support axial load in one direction, while double-direction types support axial load in both directions; they are not intended for radial loading.

Key features

  • ·Dedicated axial load support
  • ·Simple structure with low friction
  • ·Single- and double-direction designs
  • ·Separable components for easy mounting and inspection

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

符号数值说明
≈m0.221 kg重量
nG6.000 1/min极限转速
nϑr8.000 1/min参考转速
符号数值说明
d48 mm内径
D65 mm外径
B19.9 mm宽度
r1, 2 min1 mm最小倒角尺寸
符号数值说明
da min51 mmMin. shoulder diameter for mounting, inner ring
Da max48 mmMax. shoulder diameter for mounting, housing
符号数值说明
Tmin-30 °C最低工作温度
Tmax150 °C最高工作温度
代码说明
JPCage
PNTolerance class
📄数据手册PDF下载
