| 符号 | 数值 | 说明 |
|---|---|---|
| ≈m | 0.291 kg | 重量 |
| Cr | 30.000 N | 基本额定动载荷（径向） |
| C0r | 19.000 N | 基本额定静载荷（径向） |
| Cur | 1.320 N | 疲劳极限载荷（径向） |
| nG | 13.400 1/min | 极限转速 |
| nϑr | 9.600 1/min | 参考转速 |
+82 70-7954-6116
info@kovar.kr
技术支持时间：周一至周五 9:00–18:00（韩国时间）
FAG
FAG 7207-B-XL-JP-UA Angular Contact Ball Bearings 角接触球轴承 35 × 72 × 17 mm
Angular Contact Ball Bearing
CN¥249.52起
不含税fag:7207-B-XL-JP-UACN¥249.52
| 规格 | 价格 | 数量 |
|---|---|---|
| fag:7207-B-XL-JP-UA | CN¥249.52 |
有库存预计配送日期：2026.06.16（韩国库存）
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
- Category
- 角接触球轴承
- Bore
- 35 mm mm
- Outer Ø
- 72 mm mm
- Width
- 17 mm mm
Overview
FAG 7207-B-XL-JP-UA Angular Contact Ball Bearing supports combined radial and one-direction axial load through a defined contact angle. It is a high-speed, high-precision choice for pumps, compressors, machine tools, and spindle-related positions where axial rigidity and rotational accuracy matter.
The inner and outer ring raceways are offset to create a contact angle. Single-row, double-row, or matched arrangements can be used to meet axial load direction, preload, and rigidity requirements.
Key features
- Supports combined radial and one-direction axial load
- High-speed and high-accuracy operation
- Preload and rigidity adjustable through matched mounting
- Suitable for precision rotating assemblies
Typical applications
- Machine tool spindles and support shafts
- Pumps and compressors
- High-speed motors
- Precision gearboxes and robot drives
Selection guidance
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

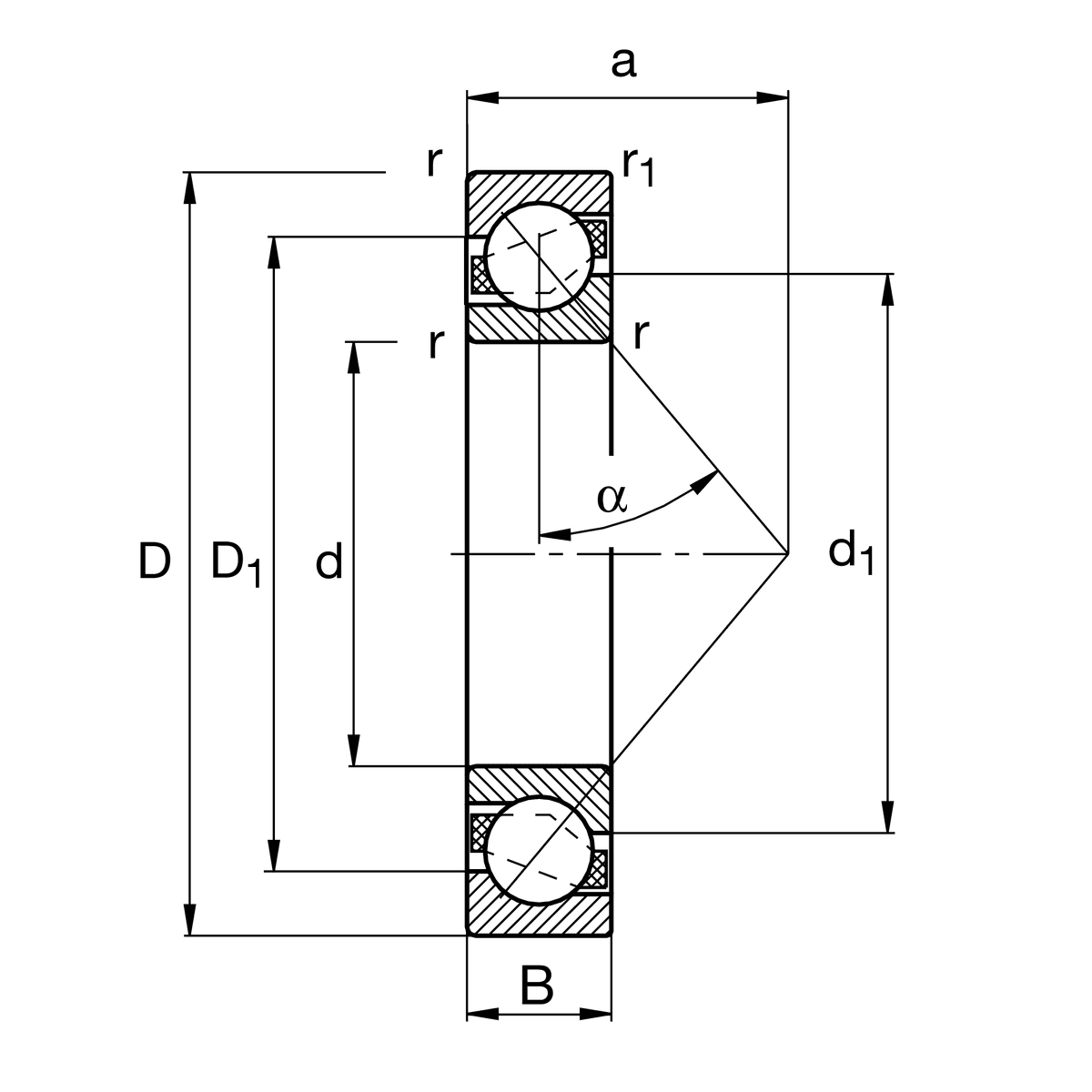

| 符号 | 数值 | 说明 |
|---|---|---|
| d | 35 mm | 内径 |
| D | 72 mm | 外径 |
| B | 17 mm | 宽度 |
| r1, 2 min | 1,1 mm | 最小倒角尺寸 |
| 符号 | 数值 | 说明 |
|---|---|---|
| Da max | 65 mm | Max. shoulder diameter for mounting, housing |
| ra max | 1 mm | Max. fillet radius |
| 符号 | 数值 | 说明 |
|---|---|---|
| Tmin | -30 °C | 最低工作温度 |
| Tmax | 150 °C | 最高工作温度 |
