| 符号 | 数值 | 说明 |
|---|---|---|
| d | 90 mm | 内径 |
| D | 140 mm | 外径 |
| B | 67 mm | 宽度 |
| Cr | 305.000 N | 基本额定动载荷（径向） |
| C0r | 510.000 N | 基本额定静载荷（径向） |
| Cur | 70.000 N | 疲劳极限载荷（径向） |
| nG Grease | 1.410 1/min | 脂润滑极限转速 |
| ≈m | 3,554 kg | 重量 |
+82 70-7954-6116
info@kovar.kr
技术支持时间：周一至周五 9:00–18:00（韩国时间）
INA

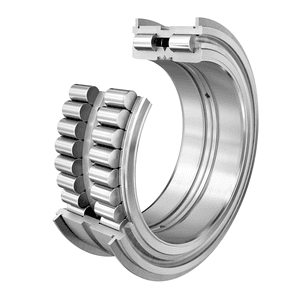

INA SL04-5018-D-PP-2NR 圆柱滚子轴承 90 × 140 × 67 mm
Cylindrical Roller Bearing
CN¥1,277.49起
不含税ina:SL04-5018-D-PP-2NRCN¥1,277.49
| 规格 | 价格 | 数量 |
|---|---|---|
| ina:SL04-5018-D-PP-2NR | CN¥1,277.49 |
有库存预计配送日期：2026.06.16（韩国库存）
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
- Category
- 圆柱滚子轴承
- Dimensions
- 90x140x67mm
Overview
INA SL04-5018-D-PP-2NR Cylindrical Roller Bearing is designed for high radial load capacity through line contact between rollers and raceways. It is suitable for rigid, heavy-duty applications such as motors, gearboxes, rolling mills, and machine tools, with N, NU, NJ, and NUP designs offering different axial locating functions.
Cylindrical rollers and a cage are arranged between inner and outer ring raceways. Depending on flange configuration, the bearing can be separable and may support axial load in one or both directions.
Key features
- High radial load capacity
- Rigid performance for high-speed operation
- Separable design for easier mounting
- Axial locating capability by design variant
Typical applications
- Industrial electric motors
- Gearboxes and reducers
- Machine tool spindle support positions
- Rolling mills, paper machines, and heavy machinery
Selection guidance
Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.
| 符号 | 数值 | 说明 |
|---|---|---|
| C | 66 mm | 外圈宽度 |
| C1 | 59,2 mm | Distance ring grooves |
| D1 | 137 mm | Diameter of groove |
| m | 4,2 mm | Width of groove |
| rmin | 0,6 mm | 最小倒角尺寸 |
| t | 1,5 mm | Chamfer width |
| X | 54 mm | Distance between rolling elements |
| 项目 | 代码 | 说明 |
|---|---|---|
| 设计 | D | New outer Contour |
| 密封 | PP | Contact Seal on both sides |
| Holding Rings | 2NR | Two retaining rings included |
| 径向内部游隙 | CN (Group N) | 标准内部游隙 |
| 公差等级 | PN | 标准 (PN) |
| 滚动体列数 | 2 | 双列结构 |
| 符号 | 数值 | 说明 |
|---|---|---|
| Ca1 | 54 mm | Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2 |
| Ca2 | 51 mm | Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2 |
| d1 | 109,5 mm | 内圈肋直径 |
| d2 | 118 mm | 密封直径（肋） |
| d3 | 152 mm | Outside diameter of snap ring WRE |
| d1 min | 109,5 mm | 轴肩最小直径 |
| 30 ° | Chamfer angle | |
| -0,2 mm | Lower distance snap ring tolerance | |
| -0,2 mm | Lower distance retaining ring tolerance | |
| 0 mm | 卡环上偏差 | |
| 0 mm | 挡圈上偏差 | |
| 0 mm | Lower distance ring groove tolerance | |
| 0,2 mm | 环槽上偏差 |
| 符号 | 数值 | 说明 |
|---|---|---|
| Tmin | -20 °C | 最低工作温度 |
| Tmax | 80 °C | 最高工作温度 |
