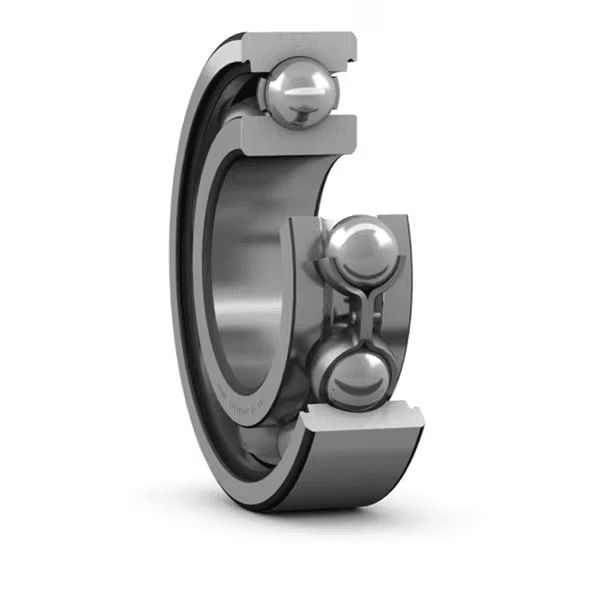

SKF 6008 -2Z/VA208 深沟球轴承 40 × 68 × 15 mm

深沟球轴承

Deep Groove Ball Bearing

询价

预计配送日期：2026.07.10（海外库存，约4周）

有库存预计配送日期：2026.07.10（海外库存，约4周）

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

Category: 深沟球轴承
Dimensions: 40x68x15mm

Overview

深沟球轴承

The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.

Key features

Highly versatile standard bearing type
Low friction and stable high-speed rotation
Supports radial load and moderate bidirectional axial load
Available in open, shielded, and sealed designs

Typical applications

Electric motors and generators
Pumps, fans, and blowers
Gearboxes and reducers
Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

符号	数值	说明
C0	11 kN	基本额定静载荷
limiting_speed_rpm	80 r/min	极限转速
max_operating_temp_c	350 °C	最高工作温度

符号	数值	说明
d	40 mm	内径
D	68 mm	外径
B	15 mm	宽度

符号	数值	说明
da	max. 49.2 mm	da
Da	max. 63.4 mm	Da
ra	max. 1 mm	ra

针对最高350°C(660°F)高温运行优化
해당 ISO 치수의 그리스 윤활 베어링으로 쉽게 교체됨
提高可靠性
降低复杂性和环境影响
一体式密封延长轴承寿命
单列深沟球轴承的典型优点

代码	说明
필링 슬롯	无
열 개수	1
로케이팅 기능, 베어링 외륜	无
보어 유형	圆柱形
케이지	非金属
일치된 배열	否
경방향 내부틈새	Multiples of C5
소재, 베어링	高温钢
코팅	已涂层
씰링	两侧防尘盖
씰링 유형	非接触
윤활유	固体润滑剂
재윤활 기능	无
제품 순 중량	0.194 kg
eClass 코드	23-05-90-90
UNSPSC 코드	31171504

数据手册PDF下载
