| 符号 | 数值 | 说明 |
|---|---|---|
| C | 114 kN | 基本额定动载荷 |
| C0 | 81.5 kN | 基本额定静载荷 |
| reference_speed_rpm | 8 000 r/min | 参考转速 |
| limiting_speed_rpm | 2 400 r/min | 极限转速 |
| performance_class | SKF Explorer | SKF性能等级 |
+82 70-7954-6116
info@kovar.kr
技术支持时间：周一至周五 9:00–18:00（韩国时间）
SKF

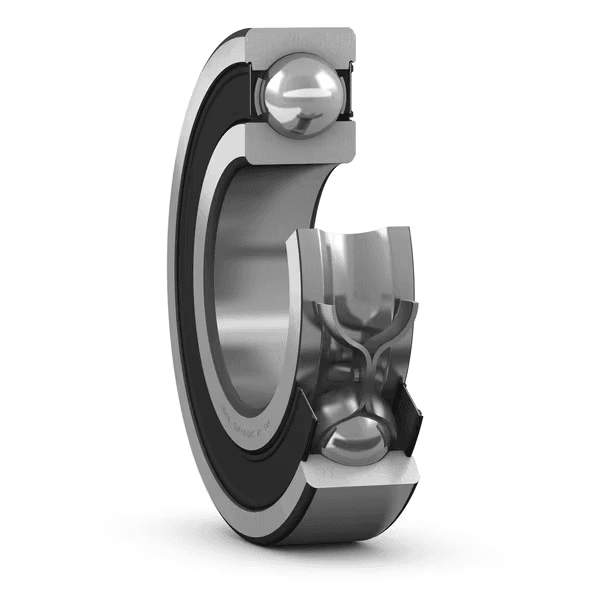

SKF 6219-2RS1/C3 深沟球轴承 95 × 170 × 32 mm
带密封或防尘盖的深沟球轴承
Deep Groove Ball Bearing
询价
即将补货 · 咨询
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
- Category
- 深沟球轴承
- Dimensions
- 95x170x32mm
Overview
带密封或防尘盖的深沟球轴承
带密封或防尘盖的单列深沟球轴承通用性强，摩擦很低，并经过优化，可降低噪声和振动，从而提高旋转转速。 能承受径向载荷和双向轴向载荷，安装方便，需要所需的维护比很多其他轴承类型要少很多。 嵌入式密封可大幅延长轴承的使用寿命，因为它可防止润滑脂泄漏和污染物进入。
Key features
- 嵌入式密封可延长轴承的使用寿命；；简单通用坚固的设计；低摩擦；高速能力；能承受径向载荷和双向的轴向载荷；几乎不需要维护
Typical applications
- Electric motors and generators
- Pumps, fans, and blowers
- Gearboxes and reducers
- Conveyors and general industrial machinery
Selection guidance
Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.
| 符号 | 数值 | 说明 |
|---|---|---|
| d | 95 mm | 内径 |
| D | 170 mm | 外径 |
| B | 32 mm | 宽度 |
- 一体式密封延长轴承寿命
- 提高耐化学性和耐腐蚀性
- 简单、多用途且坚固的设计
- 低摩擦
- 高速性能
- 承受双向径向和轴向载荷
- 几乎无需维护
| 代码 | 说明 |
|---|---|
| 필링 슬롯 | 无 |
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | 无 |
| 보어 유형 | 圆柱形 |
| 케이지 | 钣金 |
| 일치된 배열 | 否 |
| 경방향 내부틈새 | C3 |
| 소재, 베어링 | 轴承钢 |
| 코팅 | 无 |
| 씰링 | 两侧密封 |
| 씰링 유형 | 接触式 |
| 윤활유 | 润滑脂 |
| 재윤활 기능 | 无 |
| 제품 순 중량 | 2.65 kg |
| eClass 코드 | 23-05-08-01 |
| UNSPSC 코드 | 31171504 |
