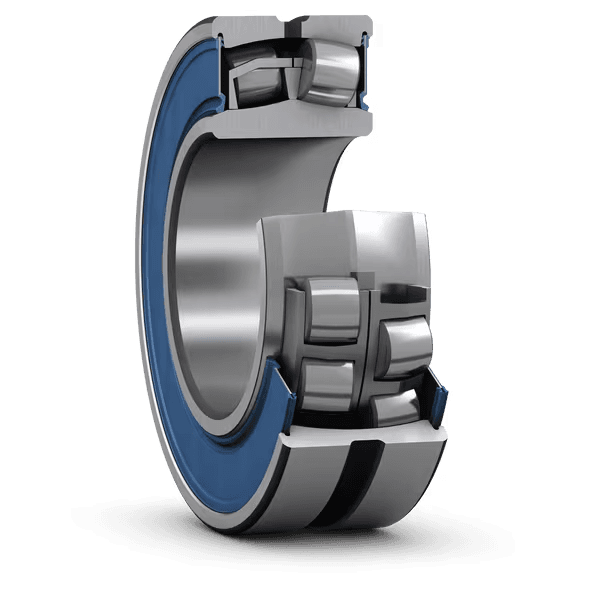

SKF BS2-2205-2RS/GFP9VA944 调心滚子轴承 25 × 52 × 23 mm

SKF Food line 球面滚子轴承

Spherical Roller Bearing

询价

即将补货 · 咨询

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

Category: 调心滚子轴承
Dimensions: 25x52x23mm

Overview

SKF Food line 球面滚子轴承

SKF Food line 球面滚子轴承符合食品安全法规。采用食品级密封件和润滑脂设计，可提高食品安全性、增强可靠性，并支持可持续发展。球面滚子轴承可承受双向的重载荷。它们具有自调心功能，可补偿不对中和轴挠曲，而摩擦或温度几乎不会增加。

Key features

符合食品安全法规
补偿高达 0.5 度的不对中
高承载能力
带密封以提高可靠性，并具有再润滑功能
低摩擦和长使用寿命
提高耐磨性

Typical applications

Conveyor pulleys
Crushers, screens, and mining equipment
Steel and paper machinery
Wind turbines and heavy machinery

Selection guidance

Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.

符号	数值	说明
C	49.9 kN	基本额定动载荷
C0	44 kN	基本额定静载荷
limiting_speed_rpm	780 r/min	极限转速
performance_class	SKF Explorer	SKF性能等级

符号	数值	说明
d	25 mm	内径
D	52 mm	外径
B	23 mm	宽度

符号	数值	说明
da	max. 30 mm	da
Da	max. 46.4 mm	Da
ra	max. 1 mm	ra

Compliant with food safety regulations
Accommodate misalignment up to 0.5 degree
High load carrying capacity
Sealed for increased reliability
with relubrication features
Low friction and long service life
Increased wear resistance

代码	说明
열 개수	2
로케이팅 기능, 베어링 외륜	无
보어 유형	圆柱形
케이지	钣金
경방향 내부틈새	CN
치수에 대한 공차 등급	标准
런아웃 공차 등급	P5
씰링	两侧密封
씰링 유형	接触式
윤활유	食品级油
재윤활 기능	包含
제품 순 중량	0.21 kg
eClass 코드	23-05-09-11
UNSPSC 코드	31171510
