| 符号 | 数值 | 说明 |
|---|---|---|
| C | 204 kN | 基本额定动载荷 |
| C0 | 325 kN | 基本额定静载荷 |
| limiting_speed_rpm | 1 900 r/min | 极限转速 |
| performance_class | SKF Explorer | SKF性能等级 |
+82 70-7954-6116
info@kovar.kr
技术支持时间：周一至周五 9:00–18:00（韩国时间）
SKF

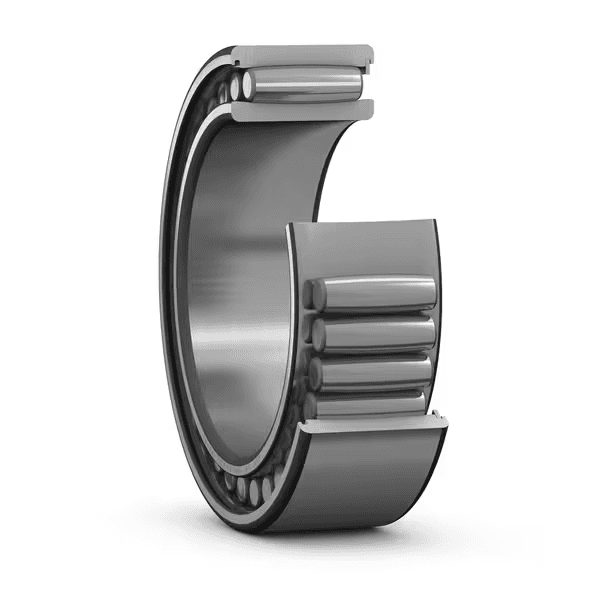

SKF C5915 V 调心球轴承 75 × 105 × 40 mm
满装 CARB 圆环滚柱轴承
Self-Aligning Ball Bearing
询价
即将补货 · 咨询
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
- Category
- 调心球轴承
- Dimensions
- 75x105x40mm
Overview
满装 CARB 圆环滚柱轴承
CARB 圆环滚子轴承很独特：不但能在不增加应力水平的情况下承受不对中，还能在自调心轴承配置中的浮动端实现轴承内的无摩擦轴向移动。 这种满装轴承的额定转速较低，尽可能多地装入滚子，使其能承受最大的额定载荷。
Key features
- 可承受轴承内的不对中和轴向位移；径向承载能力高；实现无摩擦轴向位移；轴承使用寿命长
Typical applications
- Motors, pumps, and fans
- Reducers and industrial gearboxes
- Conveyors and handling equipment
- General industrial machinery maintenance
Selection guidance
Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.
| 符号 | 数值 | 说明 |
|---|---|---|
| d | 75 mm | 内径 |
| D | 105 mm | 外径 |
| B | 40 mm | 宽度 |
| 符号 | 数值 | 说明 |
|---|---|---|
| da | max. 89 mm | da |
| Da | max. 100 mm | Da |
| ra | max. 1 mm | ra |
- 补偿轴承内不对中及轴向位移
- 极高径向承载能力
- 提供无摩擦轴向位移
- 轴承系统寿命长
| 代码 | 说明 |
|---|---|
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | 无 |
| 보어 유형 | 圆柱形 |
| 케이지 | 无 |
| 경방향 내부틈새 | CN |
| 공차 클래스 | 标准 |
| 씰링 | 无 |
| 윤활유 | 无 |
| 재윤활 기능 | 无 |
| 제품 순 중량 | 1.03 kg |
| eClass 코드 | 23-05-09-13 |
| UNSPSC 코드 | 31171505 |
