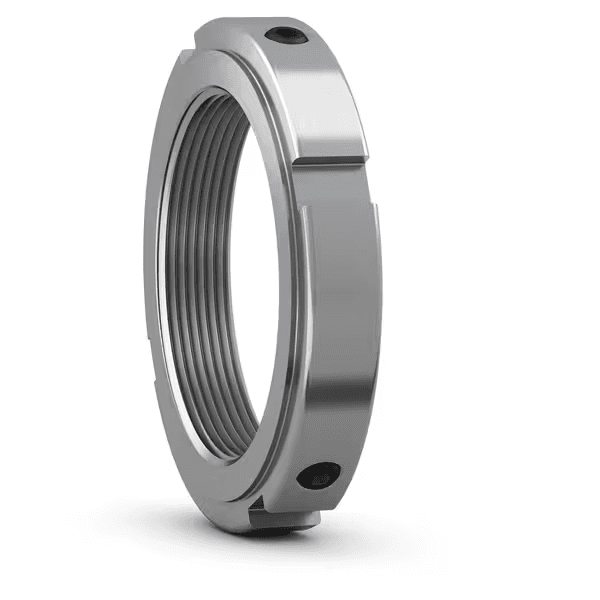

SKF KMF 4 20 × 32 × 9 mm

米制螺纹锁紧螺母，带三个锁紧螺钉

询价

即将补货 · 咨询

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

Dimensions: 20x32x9mm

Overview

米制螺纹锁紧螺母，带三个锁紧螺钉

带整体锁紧螺钉的 KMF 锁紧螺母设计用于将径向轴承轴向定位在轴上。由于无需键槽，可降低轴的成本。使用三个整体紧定螺钉安装快速简便，无需单独的锁紧装置。

Key features

无需键槽
针对目标应用的简单而坚固的锁紧
可重复使用
经济高效
配有用于拧紧角度的可视标记

Typical applications

Motors, pumps, and fans
Reducers and industrial gearboxes
Conveyors and handling equipment
General industrial machinery maintenance

Selection guidance

Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.

符号	数值	说明
G	M20x1	螺纹代号
d	20 mm	内径
D	32 mm	外径
B	9 mm	宽度

No keyway required
Simple and robust locking for intended applications
Reusable
Cost-effective
Equipped with visual marks for the use of tightening angles

代码	说明
고정 장치	已反映在锁紧螺母中
유압 장착 너트	否
관련 장착 도구	HN 4
제품 순 중량	0.033 kg
eClass 코드	23-11-07-05
UNSPSC 코드	31163218

数据手册PDF下载
