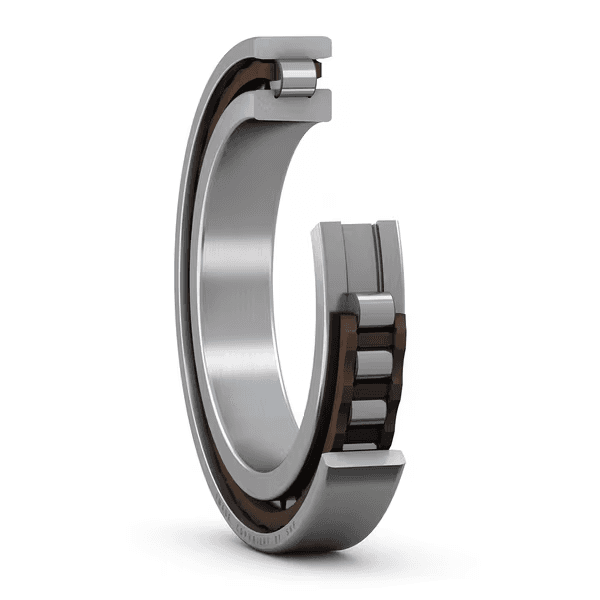

SKF N 1016 KPHA/SP 圆柱滚子轴承 80 × 125 × 22 mm

超精密单列圆柱滚子轴承

Cylindrical Roller Bearing

询价

即将补货 · 咨询

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

Category: 圆柱滚子轴承
Dimensions: 80x125x22mm

Overview

超精密单列圆柱滚子轴承

这些超精密单列圆柱滚子轴承具有锥孔，可承受轴相对于轴承座的双向轴向位移。提供基本设计和高速设计两种型式。

Key features

适应高速
低摩擦
可分离

Typical applications

Industrial electric motors
Gearboxes and reducers
Machine tool spindle support positions
Rolling mills, paper machines, and heavy machinery

Selection guidance

Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.

符号	数值	说明
C	66 kN	基本额定动载荷
C0	86.5 kN	基本额定静载荷
grease_speed_rpm	16 000 r/min	可达脂润滑转速
oil_air_speed_rpm	19 000 r/min	可达油气润滑转速

符号	数值	说明
d	80 mm	内径
D	125 mm	外径
B	22 mm	宽度

符号	数值	说明
da	min. 86.5 mm	da
Da	max. 118.5 mm	Da
ra	max. 1 mm	ra
dn	99.3 mm	dn

适应高转速
저마찰
可分离

代码	说明
베어링 부품	整套轴承
열 개수	1
보어 유형	锥度1:12
케이지	非金属
플랜지 개수, 외부 링	0
플랜지 개수, 내부 링	2
루스 플랜지	无
경방향 내부틈새	C1
공차 클래스	SP级 (SP)
소재, 베어링	轴承钢
코팅	无
씰링	无
윤활유	无
재윤활 기능	无
제품 순 중량	0.88 kg
eClass 코드	23-05-09-01
UNSPSC 코드	31171505

数据手册PDF下载
