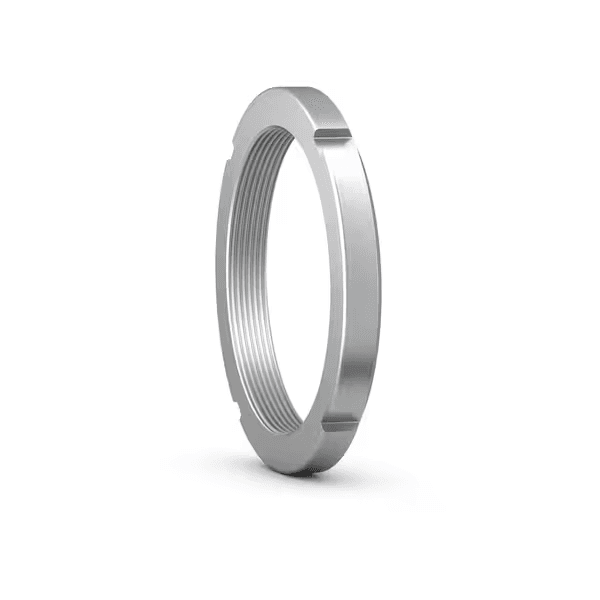

SKF N 13 64.719 × 85.852 × 14.554 mm

通过锁紧垫圈或锁定板锁定的带英制螺纹的锁紧螺母

询价

即将补货 · 咨询

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

Dimensions: 64.719x85.852x14.554mm

Overview

通过锁紧垫圈或锁定板锁定的带英制螺纹的锁紧螺母

N 锁紧螺母用于将轴承锁定在轴上。其圆周上有英制螺纹和四个等距分布的槽，方便使用扳手锁紧。应通过锁定垫圈活泼锁定板锁定，防止意外松动。在没有损坏的情况下，N 锁紧螺母可以重复使用。

Key features

紧固件简单、可靠且稳定；便于装卸；可采用新的锁紧设备重复利用；在轴或者紧定套内需要一个键槽

Typical applications

Motors, pumps, and fans
Reducers and industrial gearboxes
Conveyors and handling equipment
General industrial machinery maintenance

Selection guidance

Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.

符号	数值	说明
G	2.548-18	螺纹代号
d	64.719 mm	内径
D	85.852 mm	外径
B	14.554 mm	宽度

简单、稳定、可靠的固定元件
安装和拆卸方便
与新锁紧装置一起可重复使用
轴或紧定套上需要键槽

代码	说明
고정 장치	锁紧垫圈
유압 장착 너트	否
관련 장착 도구	HN 12-13
제품 순 중량	0.24 kg
eClass 코드	23-11-07-05
UNSPSC 코드	31163218
