SKF

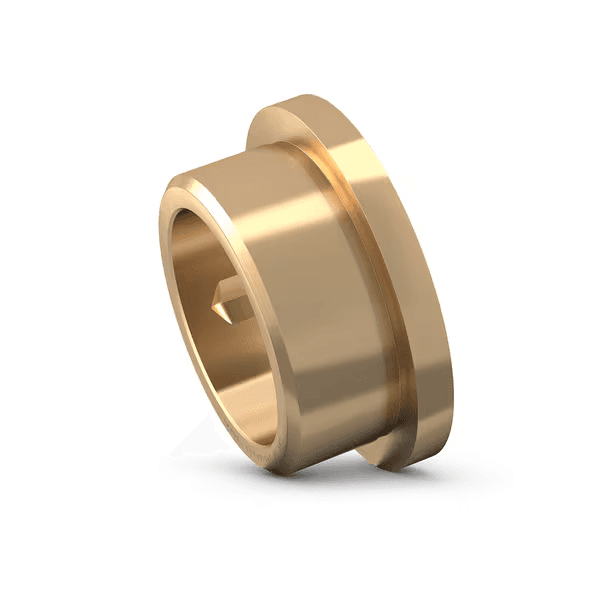

SKF PBMF 405040 M1G1 关节轴承 40 × 50 × 40 mm
固态实心青铜翻边式轴套
Spherical Plain Bearing
询价
即将补货 · 咨询
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
- Category
- 关节轴承
- Dimensions
- 40x50x40mm
Overview
固态实心青铜翻边式轴套
SKF 实心铜翻边式轴套适合摆动、旋转和轴向往复运动，可承受径向载荷以及单向轴向载荷。 它们可用于多种运行条件和恶劣条件下的设备应用。
Key features
- 对灰尘环境不敏感；低速下能承受冲击载荷和振动；可在较低光洁度的轴上运行；防腐性强
Typical applications
- Hydraulic cylinder rod ends
- Construction machinery linkages
- Agricultural joints
- Industrial pivot structures
Selection guidance
Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.
| 符号 | 数值 | 说明 |
|---|---|---|
| d | 40 mm | 内径 |
| D | 50 mm | 外径 |
| B | 40 mm | 宽度 |
| D2 | 60 mm | 法兰直径 |
| C | 6 mm | 法兰厚度 |
- 耐受脏污环境
- 在低速下耐冲击载荷和振动
- 即使轴表面质量较低也能工作
- 良好的耐腐蚀性
| 代码 | 说明 |
|---|---|
| 설계 | 플랜지 |
| 재료 | 实体青铜 |
| 재윤활 기능 | 包含 |
| 제품 순 중량 | 0.298 kg |
| eClass 코드 | 23-05-01-90 |
| UNSPSC 코드 | 31171605 |
