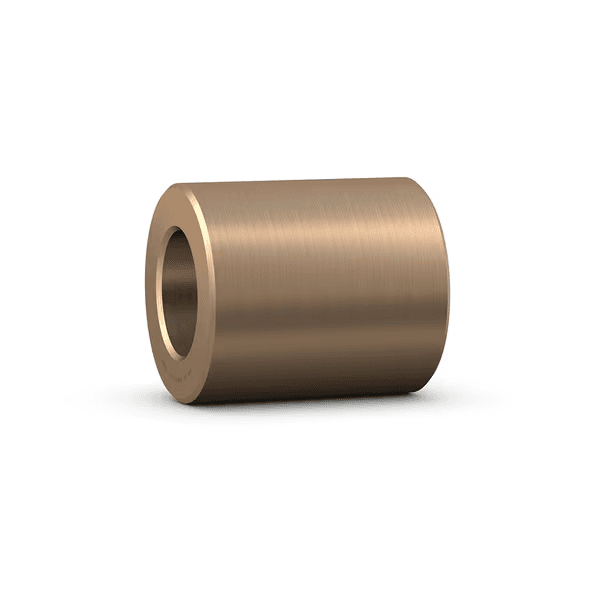

SKF PSM121612 A51 关节轴承 12 × 16 × 12 mm

烧结青铜直轴套

Spherical Plain Bearing

询价

预计配送日期：2026.07.09（海外库存，约4周）

有库存预计配送日期：2026.07.09（海外库存，约4周）

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

Category: 关节轴承
Dimensions: 12x16x12mm

Overview

烧结青铜直轴套

SKF 烧结铜直式（圆柱形）轴套适合旋转、摆动和轴向往复运动，可承受径向载荷。 SKF 烧结青铜轴套为自润滑和免维护型。它们由浸渍了矿物油的多孔青铜基体组成。浸油可实现很高的滑动速度，使这些轴套适合转动应用。

Key features

几乎免维护运行；摩擦系数低；滑动速度很高

Typical applications

Hydraulic cylinder rod ends
Construction machinery linkages
Agricultural joints
Industrial pivot structures

Selection guidance

Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.

符号	数值	说明
d	12 mm	内径
D	16 mm	外径
B	12 mm	宽度

免维护运行
低摩擦系数
极高滑动速度

代码	说明
설계	直
재료	烧结青铜
재윤활 기능	无
제품 순 중량	0.007 kg
eClass 코드	23-05-01-90
UNSPSC 코드	31171605

数据手册PDF下载
