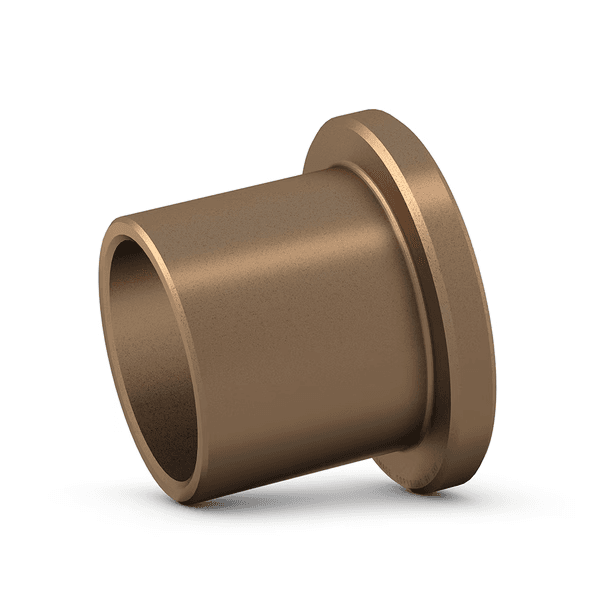

SKF PSMF253225 A51 关节轴承 25 × 32 × 25 mm

烧结青铜法兰式轴套

Spherical Plain Bearing

询价

即将补货 · 咨询

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

Category: 关节轴承
Dimensions: 25x32x25mm

Overview

烧结青铜法兰式轴套

SKF 烧结青铜法兰式轴套适合转动、震荡和线性移动，可承受径向载荷以及单向轴向载荷。 SKF 烧结青铜轴套为自润滑和免维护型。它们由浸渍了矿物油的多孔青铜基体组成。浸油可实现很高的滑动速度，使这些轴套适合转动应用。

Key features

几乎免维护运行；摩擦系数低；滑动速度很高

Typical applications

Hydraulic cylinder rod ends
Construction machinery linkages
Agricultural joints
Industrial pivot structures

Selection guidance

Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.

符号	数值	说明
d	25 mm	内径
D	32 mm	外径
B	25 mm	宽度
D2	39 mm	法兰直径
C	3.5 mm	法兰厚度

免维护运行
低摩擦系数
极高滑动速度

代码	说明
설계	플랜지
재료	烧结青铜
재윤활 기능	无
제품 순 중량	0.0605 kg
eClass 코드	23-05-01-90
UNSPSC 코드	31171605

数据手册PDF下载
