| Symbol | Wert | Beschreibung |
|---|---|---|
| ≈m | 31.52 kg | Gewicht |
| nG | 1.420 1/min | Grenzdrehzahl |
| nϑr | 780 1/min | Referenzdrehzahl |
+82 70-7954-6116
info@kovar.kr
Technischer Support: Mo–Fr 9:00–18:00 Uhr (KST)
FAG

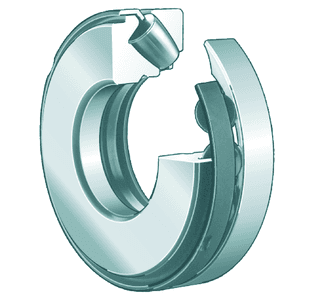

FAG 29264-E1-MB Axial-spherical Roller Bearings Axial-Pendelrollenlager 320 × 440 × 73 mm
Axial-spherical Roller Bearings
Axial Spherical Roller Bearing
Ab €4,764.67
zzgl. MwSt.fag:29264-E1-MB€4,764.67
| Spez. | Preis | Menge |
|---|---|---|
| fag:29264-E1-MB | €4,764.67 |
Auf LagerVoraussichtliche Lieferung: 16. Juni 2026 (Lagerbestand Korea)
Angegebene Preise gelten EX-WORKS (Incoterms 2020) Seoul, Korea. Fracht, Zölle und Versicherung trägt der Käufer.
- Category
- Axial-Pendelrollenlager
- Bore
- 320 mm mm
- Outer Ø
- 440 mm mm
- Width
- 73 mm mm
Overview
FAG 29264-E1-MB Axial Spherical Roller Bearing is a heavy-duty thrust bearing for very high axial loads while also accommodating a certain radial load. Its spherical raceway provides misalignment tolerance for extruders, cranes, vertical pumps, and heavy industrial axial support positions.
Asymmetrical barrel rollers and a spherical housing washer raceway transfer axial load through a large contact area. The self-aligning design benefits large equipment with shaft deflection or mounting inaccuracies.
Key features
- Very high axial load capacity
- Self-aligning capability
- Handles axial load with some radial load
- Suitable for large heavy-duty equipment
Typical applications
- Extruders and injection equipment
- Vertical pumps
- Cranes and hoists
- Steel and paper machinery
Selection guidance
Review axial load, speed, lubrication quantity, cooling, mounting alignment, and minimum load requirements.
| Symbol | Wert | Beschreibung |
|---|---|---|
| d | 320 mm | Bohrungsdurchmesser |
| D | 440 mm | Außendurchmesser |
| B | 73 mm | Breite |
| r1, 2 min | 3 mm | Mindestfasenmaß |
| Symbol | Wert | Beschreibung |
|---|---|---|
| da min | 380 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 406 mm | Max. shoulder diameter for mounting, housing |
| ra max | 2,5 mm | Max. fillet radius |
| Symbol | Wert | Beschreibung |
|---|---|---|
| Tmin | -30 °C | Betriebstemperatur min. |
| Tmax | 200 °C | Betriebstemperatur max. |
| Code | Beschreibung |
|---|---|
| MB | Cage |
