| Symbol | Wert | Beschreibung |
|---|---|---|
| d | 40 mm | Bohrungsdurchmesser |
| H | 115 mm | Höhe |
| L | 141 mm | Gesamtlänge |
| B1 | 56,5 mm | Gesamtbreite Stellring |
| ≈m | 2,5 kg | Gewicht |
+82 70-7954-6116
info@kovar.kr
Technischer Support: Mo–Fr 9:00–18:00 Uhr (KST)
INA

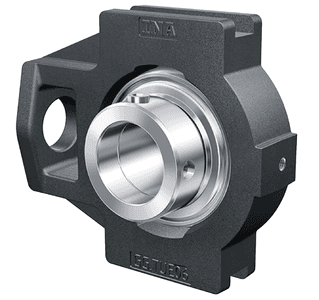

INA RTUE40-XL Spannlagergehäuse
Take-up Housing Unit
Ab €33.88
zzgl. MwSt.ina:RTUE40-XL€33.88
| Spez. | Preis | Menge |
|---|---|---|
| ina:RTUE40-XL | €33.88 |
Auf LagerVoraussichtliche Lieferung: 20. Juni 2026 (Lagerbestand Korea)
Angegebene Preise gelten EX-WORKS (Incoterms 2020) Seoul, Korea. Fracht, Zölle und Versicherung trägt der Käufer.
- Category
- Spannlagergehäuse
Overview
INA RTUE40-XL Take-up Housing Unit is a bearing unit that allows shaft position adjustment to control belt or chain tension. It combines shaft support and tensioning functions for conveyors, elevators, and handling systems, simplifying field maintenance.
An insert bearing is assembled in a sliding housing and used with a frame or take-up device. Moving the shaft forward or backward adjusts belt tension and alignment.
Key features
- Shaft position adjustment for tension control
- Integrated bearing support and take-up function
- Improves conveyor maintenance
- Misalignment-compensating structure
Typical applications
- Belt conveyors
- Chain conveyors
- Bucket elevators
- Packaging and logistics handling systems
Selection guidance
Check shaft diameter, housing slot dimensions, adjustment range, locking method, seal, and lubrication condition.
| Symbol | Wert | Beschreibung |
|---|---|---|
| L1 | 88 mm | Abstand Wellenachse |
| L2 | 16 mm | Length fixed link |
| L3 | 82 mm | Length guidance groove |
| A | 50 mm | Width housing fixing side |
| N1 | 20 mm | Width recess |
| N2 | 49 mm | Height recess |
| S1 | 35,1 mm | Abstand Laufbahn zu Stellring |
| T | 82 mm | Height housing fixing side |
| Q | M6 | Anschlussgewinde für Schmierung |
| A2 | 35 mm | Width housing |
| Element | Code | Beschreibung |
|---|---|---|
| Werkstoff | GG | Grauguss |
| Symbol | Wert | Beschreibung |
|---|---|---|
| A1 | 16 mm | Width guidance groove |
| H13 | Width guidance groove clearance | |
| H1 | 102 mm | Distance guidance grooves |
| 0,15 mm | Upper distance guidance groove tolerance | |
| -0,15 mm | Lower distance guidance groove tolerance | |
| N | 29 mm | Befestigungsbohrung |
| Symbol | Wert | Beschreibung |
|---|---|---|
| Tmin | -20 °C | Betriebstemperatur min. |
| Tmax | 120 °C | Betriebstemperatur max. |
| Code | Beschreibung |
|---|---|
| TUE08 | Gehäuse |
| GE40-XL-KRR-B | Lagerbezeichnung |
