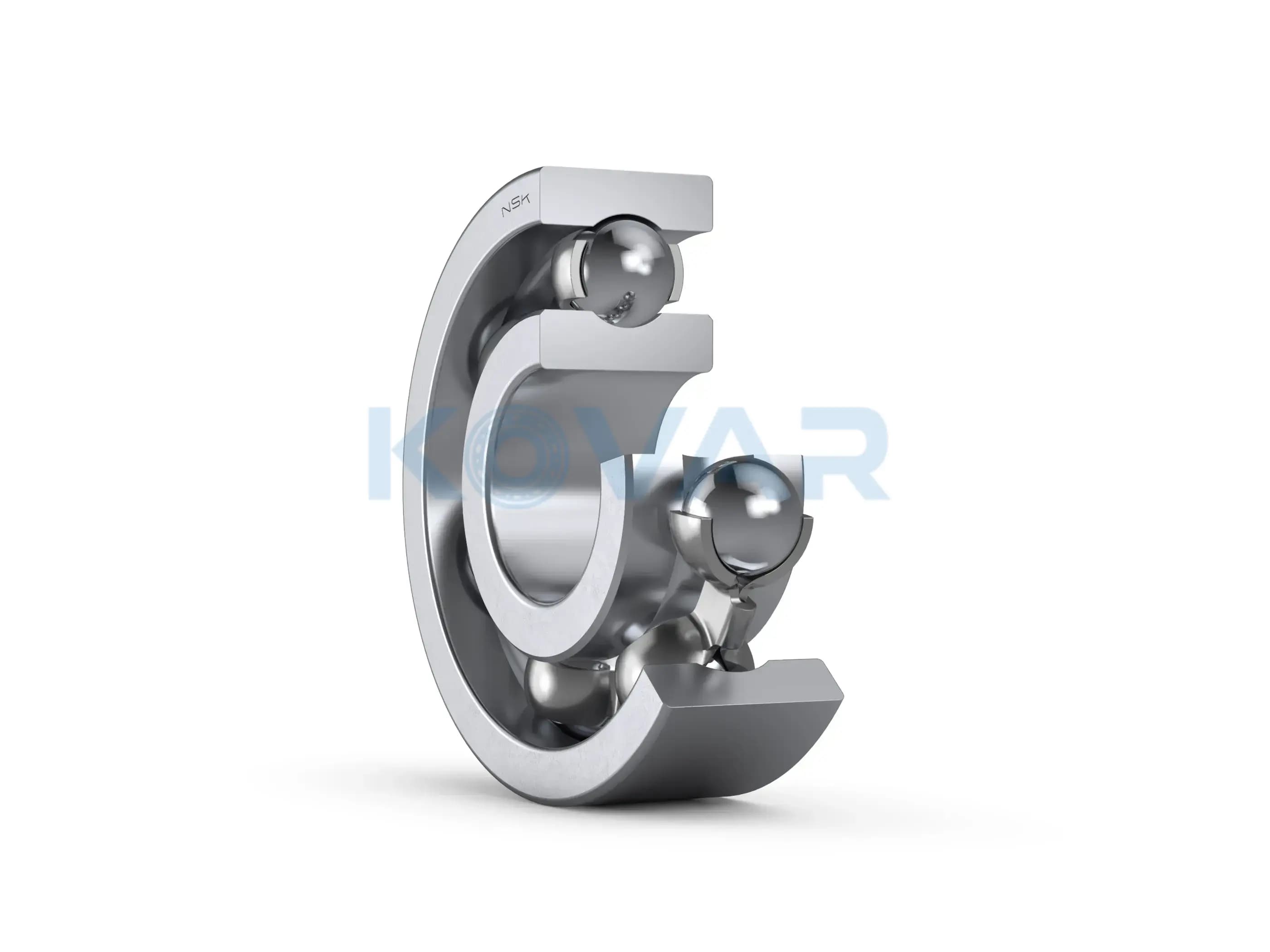

NSK NSK 7938A5SULP4 Angular Contact Ball Bearing

NSK

NSK 7938A5SULP4 Angular Contact Ball Bearing Schrägkugellager 190 × 260 × 33 mm

Angular Contact Ball Bearing

Angebotsanfrage

Voraussichtliche Lieferung: 16. Juni 2026 (Lagerbestand Korea)

Auf LagerVoraussichtliche Lieferung: 16. Juni 2026 (Lagerbestand Korea)

Angegebene Preise gelten EX-WORKS (Incoterms 2020) Seoul, Korea. Fracht, Zölle und Versicherung trägt der Käufer.

Category: Schrägkugellager
Bore: 190 mm mm
Outer Ø: Flat
Width: 33 mm mm
Material: High Carbon Steel

Overview

NSK 7938A5SULP4 Angular Contact Ball Bearing supports combined radial and one-direction axial load through a defined contact angle. It is a high-speed, high-precision choice for pumps, compressors, machine tools, and spindle-related positions where axial rigidity and rotational accuracy matter.

The inner and outer ring raceways are offset to create a contact angle. Single-row, double-row, or matched arrangements can be used to meet axial load direction, preload, and rigidity requirements.

Key features

Supports combined radial and one-direction axial load
High-speed and high-accuracy operation
Preload and rigidity adjustable through matched mounting
Suitable for precision rotating assemblies

Typical applications

Machine tool spindles and support shafts
Pumps and compressors
High-speed motors
Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Symbol	Wert	Beschreibung
d	190 mm	Bore diameter (inner)
D	260 mm	Outside diameter (outer)
B	33 mm	Breite
α	25°	Contact angle (A5 designation)
Cr	139 kN	Basic dynamic load rating
C0r	182 kN	Basic static load rating
n_grease	4,500 rpm	Limit speed with grease lubrication
n_oil	6,700 rpm	Limit speed with oil lubrication
≈m	5.1 kg	Weight (approx.)

Element	Code	Beschreibung
Type	Universal Combination Angular Contact Bearing	Single bearing, universally matchable (DB/DF/DT/QBC)
Model No.	7938A5SULP4	Standard NSK Japan part number (no TR/TYN suffix → pressed steel cage)
Abdichtung	Open type	No shield, no seal
Vorspannung	L	Light preload — high-speed precision spindle applications
Käfig	Pressed steel	Standard NSK Japan steel cage (TR = phenolic / TYN = polyamide are RHP-UK variants)
Precision	P4	ISO Class 4 ≈ JIS 4 ≈ ABEC-7

Super-precision angular contact ball bearing
High-speed machine tool spindle application
Universal single matching — combine in DB / DF / DT / QBC sets
Light preload (L) — optimized for rotational accuracy at high speed
Pressed steel cage — standard NSK Japan configuration
Open type — re-lubricable, no integral seal

Code	Beschreibung
NSK Ltd.	Original equipment manufacturer
Japan	NSK Fujisawa precision plant
Direct Import from Japan
4	≈ ISO Class 4 / DIN P4 / ABEC-7
Angular Contact Ball Bearing	Single row, defined contact angle
Flat	No snap ring, no flange
Radial	Plus axial in one direction (per angular contact geometry)
High Carbon Steel	Rings/raceways — SUJ2 high-carbon chromium bearing steel
High Carbon Chromium Bearing Steel	Steel balls (SUJ2)
8417133	External catalog reference

Datenblatt-PDF herunterladen
