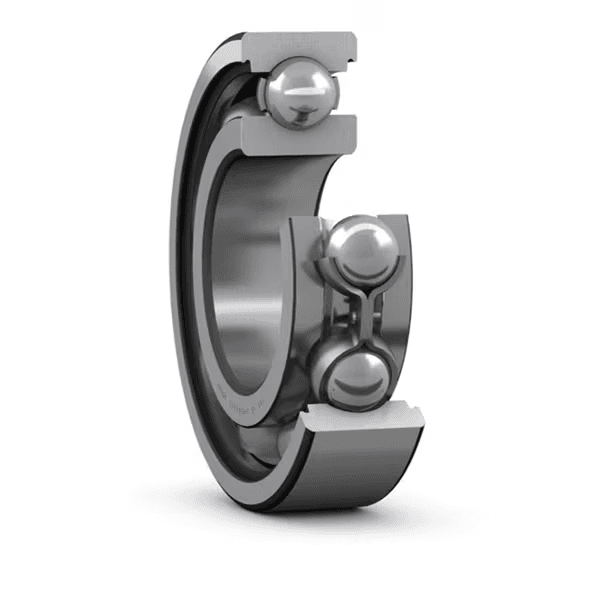

SKF 6303 Rillenkugellager 17 × 47 × 14 mm

Rillenkugellager

Deep Groove Ball Bearing

Angebotsanfrage

Nicht auf Lager

Angegebene Preise gelten EX-WORKS (Incoterms 2020) Seoul, Korea. Fracht, Zölle und Versicherung trägt der Käufer.

Category: Rillenkugellager
Dimensions: 17x47x14mm

Overview

Rillenkugellager

The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.

Key features

Highly versatile standard bearing type
Low friction and stable high-speed rotation
Supports radial load and moderate bidirectional axial load
Available in open, shielded, and sealed designs

Typical applications

Electric motors and generators
Pumps, fans, and blowers
Gearboxes and reducers
Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Symbol	Wert	Beschreibung
C	14.3 kN	Dynamische Tragzahl
C0	6.55 kN	Statische Tragzahl
reference_speed_rpm	34 000 r/min	Referenzdrehzahl
limiting_speed_rpm	22 000 r/min	Grenzdrehzahl
performance_class	SKF Explorer	SKF Leistungsklasse

Symbol	Wert	Beschreibung
d	17 mm	Bohrungsdurchmesser
D	47 mm	Außendurchmesser
B	14 mm	Breite

Symbol	Wert	Beschreibung
da	min. 22.6 mm	da
Da	max. 41.4 mm	Da
ra	max. 1 mm	ra

Einfache, vielseitige und robuste Konstruktion
Geringe Reibung
Hochgeschwindigkeitsleistung
Nimmt Radial- und Axiallasten in beide Richtungen auf
Erfordert nahezu keine Wartung

Code	Beschreibung
필링 슬롯	Keine
열 개수	1
로케이팅 기능, 베어링 외륜	Keine
보어 유형	Zylindrisch
케이지	Blech
일치된 배열	Nein
경방향 내부틈새	CN
소재, 베어링	Wälzlagerstahl
코팅	Keine
씰링	Keine
윤활유	Keine
재윤활 기능	Keine
제품 순 중량	0.11 kg
eClass 코드	23-05-08-01
UNSPSC 코드	31171504

Datenblatt-PDF herunterladen
