  1. Home
  2. /Bearings
  3. /FAG 16019 Deep Groove Ball Bearing
FAG
FAG 16019 FAG 16019 Deep Groove Ball Bearing
  • FAG 16019 FAG 16019 Deep Groove Ball Bearing

FAG

FAG 16019 Deep Groove Ball Bearing 95 × 145 × 16 mm

Deep Groove Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

SCGTDFAPMG
Category
Deep Groove Ball Bearing
Bore
95 mm
Outer Ø
145 mm
Width
16 mm

Overview

The FAG 16019 is a plain deep groove ball bearing with no suffix, 95 × 145 × 16 mm (bore × OD × width).

Kovar lists 3 FAG variants in the 95×145×16 mm size; the closest to the 16019 are 16019-C3 (internal clearance C3), 16019-C4 (internal clearance C4).

The same specification comes one size down as 16018 (90 mm bore) and one size up as 16020 (100 mm bore). Parts from other brands with the same dimensions as the 16019 include IBC 16019, KOYO 16019, NSK 16019, NTN 16019; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m0.922 kgWeight
Cr42,500 NBasic dynamic load rating, radial
C0r41,000 NBasic static load rating, radial
Cur2,050 NFatigue load limit, radial
nG6,600 1/minLimiting speed
nϑr4,150 1/minReference speed
f016.6Calculation factor

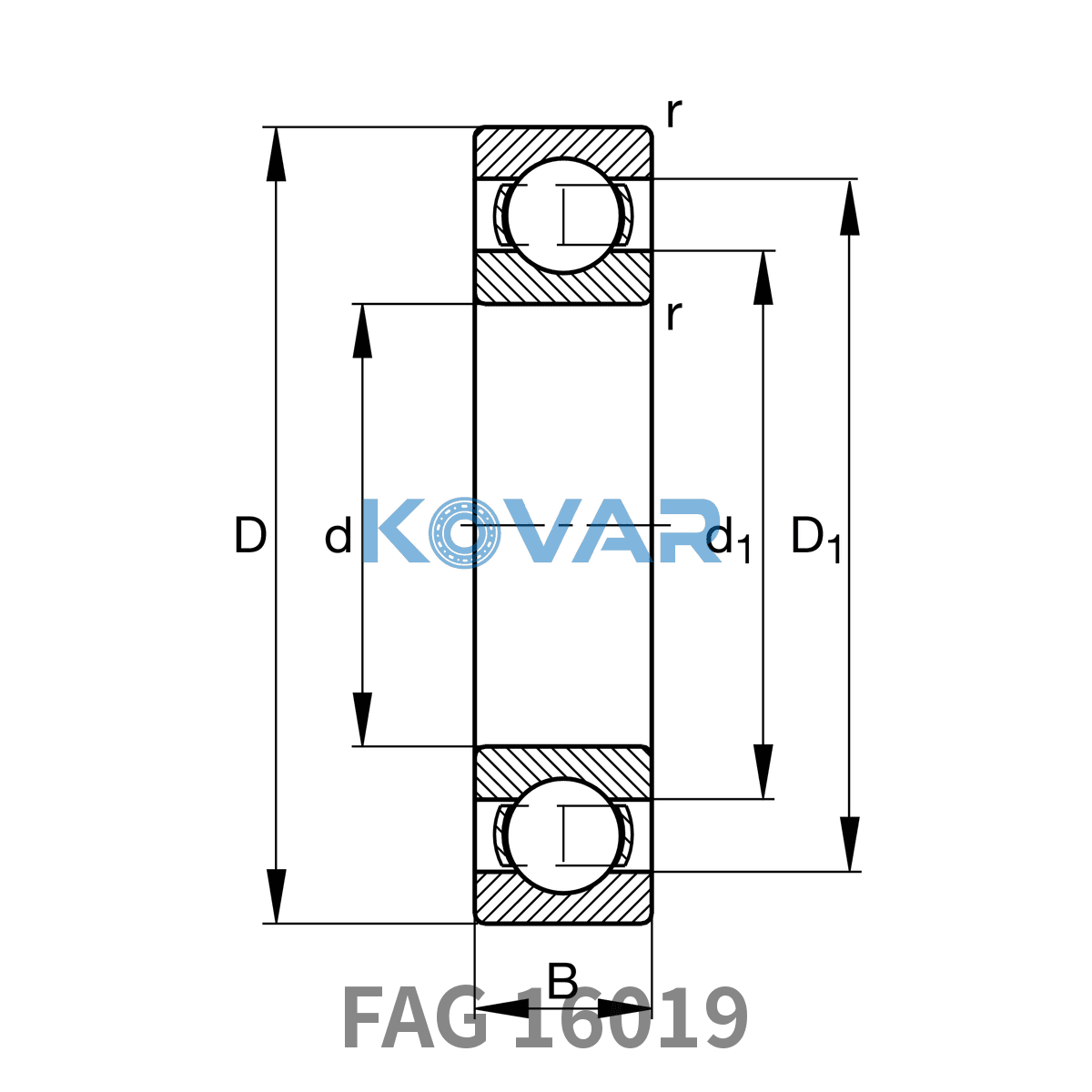

Dimensions

SymbolValueDescription
d95 mmBore diameter
D145 mmOutside diameter
B16 mmWidth
r1, 2 min1 mmMinimum chamfer dimension
D1128.28 mmShoulder diameter, outer ring
d1113.78 mmShoulder diameter, inner ring

Mounting Dimensions

SymbolValueDescription
da min99.6 mmMin. shoulder diameter for mounting, inner ring
Da max140.4 mmMax. shoulder diameter for mounting, housing
ra max1 mmMax. fillet radius

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax150 °COperating temperature max.

Product description

FAG 16019 Deep Groove Ball Bearing is a versatile rolling bearing for stable, low-friction rotation in a wide range of industrial equipment. It primarily supports radial load while accommodating moderate axial load in both directions, making it a standard choice for motors, pumps, gearboxes, and general machinery.

The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.

Key features

  • ·Highly versatile standard bearing type
  • ·Low friction and stable high-speed rotation
  • ·Supports radial load and moderate bidirectional axial load
  • ·Available in open, shielded, and sealed designs

Typical applications

  • ·Electric motors and generators
  • ·Pumps, fans, and blowers
  • ·Gearboxes and reducers
  • ·Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to FAG 16019

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • IBC
    IBC IBC 16019 Deep Groove Ball Bearing

    IBC

    16019

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 16019 Deep Groove Ball Bearing

    KOYO

    16019

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 16019 Deep Groove Ball Bearing

    NSK

    16019

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 16019 Deep Groove Ball Bearing

    NTN

    16019

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 16019 Deep Groove Ball Bearing

    SKF

    16019

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as FAG 16019, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 16019-C3 Deep Groove Ball Bearing

    FAG

    16019-C3

    Deep Groove Ball Bearing

    US$77.52

    Excl. VAT

    ●

    In stock (6)

  • KOYO
    KOYO KOYO 16019C3 Deep Groove Ball Bearing

    KOYO

    16019C3

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 16019C3 Deep Groove Ball Bearing

    NTN

    16019C3

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 16019/C3 Deep Groove Ball Bearing

    SKF

    16019/C3

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 16019-C4 Deep Groove Ball Bearing

    FAG

    16019-C4

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

More part numbers near FAG 16019

Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.
