FAG
Barrel roller bearings
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

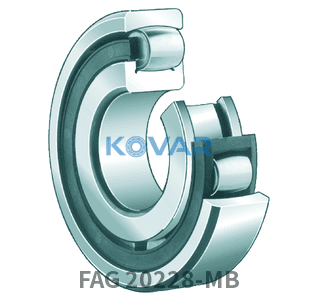

FAG 20228-MB Industrial Bearing is a core machine element that reduces shaft friction and supports loads to improve equipment efficiency and service life. It should be selected according to load direction, speed, and mounting space in motors, pumps, gearboxes, conveyors, and other machinery.
Bearings typically consist of inner ring, outer ring, rolling elements, cage, or sliding contact surfaces, with seals, shields, housings, or sleeves added depending on type. Lubrication and sealing conditions have a major impact on performance.
Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 9 kg | Weight |
| Cr | 395.000 N | Basic dynamic load rating, radial |
| C0r | 540.000 N | Basic static load rating, radial |
| Cur | 51.000 N | Fatigue load limit, radial |
| nG | 3.050 1/min | Limiting speed |
| Symbol | Value | Description |
|---|---|---|
| d | 140 mm | Bore diameter |
| D | 250 mm | Outside diameter |
| B | 42 mm | Width |
| r1, 2 min | 3 mm | Minimum chamfer dimension |
| Symbol | Value | Description |
|---|---|---|
| da min | 154 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 236 mm | Max. shoulder diameter for mounting, housing |
| ra max | 2,5 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:
20228MB20228 MB20228FAG20228MBFAG 20228 MBFAG20228 MBFAG 20228MBFAG20228RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
