Spherical Roller Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

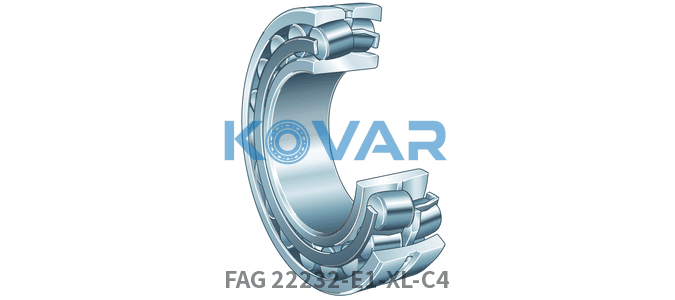

FAG 22232-E1-XL-C4 Spherical Roller Bearing is a heavy-duty bearing that tolerates shaft misalignment and deflection through spherical raceways and barrel-shaped rollers. It supports high radial load and axial load in both directions, making it suitable for mining, steel, paper, wind, and other shock-prone equipment.
The outer ring has a spherical raceway, while the inner ring carries two rows of rollers guided by a cage. This self-aligning structure compensates for minor shaft and housing misalignment during operation.
Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 23 kg | Weight |
| Cr | 1.150.000 N | Basic dynamic load rating, radial |
| C0r | 1.400.000 N | Basic static load rating, radial |
| Cur | 129.000 N | Fatigue load limit, radial |
| nG | 2.650 1/min | Limiting speed |
| nϑr | 1.900 1/min | Reference speed |
| Symbol | Value | Description |
|---|---|---|
| d | 160 mm | Bore diameter |
| D | 290 mm | Outside diameter |
| B | 80 mm | Width |
| r1, 2 min | 3 mm | Minimum chamfer dimension |
| F | 190,9 mm | Raceway diameter of inner ring |
| Symbol | Value | Description |
|---|---|---|
| da min | 174 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 276 mm | Max. shoulder diameter for mounting, housing |
| ra max | 2,5 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
| Symbol | Value | Description |
|---|---|---|
| e | 0,26 | Limit value Fa/Fr |
| Y | 3,93 | Dynamic axial load factor |
| Code | Description |
|---|---|
| E1 | Product variant code |
| Z | Bore type |
| JPA | Cage |
| C4 (Group 4) | Radial clearance group |
| Standard bearing steel | Material |
