FAG
Self-Aligning Ball Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
FAG 2303-2RS-TVH Industrial Bearing is a core machine element that reduces shaft friction and supports loads to improve equipment efficiency and service life. It should be selected according to load direction, speed, and mounting space in motors, pumps, gearboxes, conveyors, and other machinery.
Bearings typically consist of inner ring, outer ring, rolling elements, cage, or sliding contact surfaces, with seals, shields, housings, or sleeves added depending on type. Lubrication and sealing conditions have a major impact on performance.
Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0,164 kg | Weight |
| Cr | 12.900 N | Basic dynamic load rating, radial |
| C0r | 3.200 N | Basic static load rating, radial |
| Cur | 202 N | Fatigue load limit, radial |
| nG | 10.700 1/min | Limiting speed |
| Symbol | Value | Description |
|---|---|---|

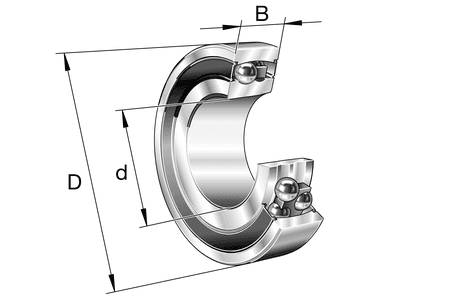

| d | 17 mm | Bore diameter |
| D | 47 mm | Outside diameter |
| B | 19 mm | Width |
| r1, 2 min | 1 mm | Minimum chamfer dimension |
| D1 | 37,2 mm | Shoulder diameter, outer ring |
| d1 | 26,5 mm | Shoulder diameter, inner ring |
| Symbol | Value | Description |
|---|---|---|
| da min | 22,6 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 41,4 mm | Max. shoulder diameter for mounting, housing |
| ra max | 1 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
| Symbol | Value | Description |
|---|---|---|
| e | 0,32 | Limit value Fa/Fr |
| Y | 3,01 | Dynamic axial load factor |
| Code | Description |
|---|---|
| Z | Bore type |
| 2RS | Sealing type |
| TVH | Cage |
| PN | Tolerance class |
| CN (Group N) | Radial clearance group |
| GA14 | Lubricant |
