  1. Home
  2. /Bearings
  3. /FAG 29296-E1-MB Axial Spherical Roller Bearing
FAG

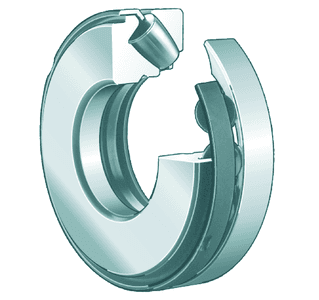

FAG 29296-E1-MB FAG 29296-E1-MB Axial Spherical Roller Bearing
  • FAG 29296-E1-MB FAG 29296-E1-MB Axial Spherical Roller Bearing

FAG

FAG 29296-E1-MB Axial Spherical Roller Bearing 480 × 650 × 103 mm

Axial Spherical Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXBTG38DY0
Category
Axial Spherical Roller Bearing
Bore
480 mm
Outer Ø
650 mm
Width
103 mm

Overview

The FAG 29296-E1-MB is an axial spherical roller bearing, 480 × 650 × 103 mm (bore × OD × width).

Parts from other brands with the same dimensions as the 29296-E1-MB include SLF 29296E.MB; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m96 kgWeight
nG920 1/minLimiting speed
nϑr520 1/minReference speed
Ca2,650,000 NAxial Dynamic Load Rating (Ca)
C0a13,700,000 NAxial Static Load Rating (C0a)
Cua1,330,000 NCua
Dbmin662 mmMinimum bore diameter housing
dbmax507 mmMaximum distance sleeve
d1620 mmRip diameter shaft washer
A259 mmDistance of the center point
StandardStandard
WithoutLocating feature, housing washer
WithoutHandling thread holes
WithoutTest certificate

Dimensions

SymbolValueDescription
d480 mmBore diameter
D650 mmOutside diameter
B103 mmWidth
r1, 2 min5 mmMinimum chamfer dimension

Mounting Dimensions

SymbolValueDescription
da min565 mmMin. shoulder diameter for mounting, inner ring
Da max603 mmMax. shoulder diameter for mounting, housing
ra max4 mmMax. fillet radius

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax200 °COperating temperature max.

Related Parts

CodeDescription
MBCage

Product description

FAG 29296-E1-MB Axial Spherical Roller Bearing is a heavy-duty thrust bearing for very high axial loads while also accommodating a certain radial load. Its spherical raceway provides misalignment tolerance for extruders, cranes, vertical pumps, and heavy industrial axial support positions.

Asymmetrical barrel rollers and a spherical housing washer raceway transfer axial load through a large contact area. The self-aligning design benefits large equipment with shaft deflection or mounting inaccuracies.

Key features

  • ·Very high axial load capacity
  • ·Self-aligning capability
  • ·Handles axial load with some radial load
  • ·Suitable for large heavy-duty equipment

Typical applications

  • ·Extruders and injection equipment
  • ·Vertical pumps
  • ·Cranes and hoists
  • ·Steel and paper machinery

Selection guidance

Review axial load, speed, lubrication quantity, cooling, mounting alignment, and minimum load requirements.

Datasheet

📄datasheet pdf download

Part number formats

All of these refer to this part. Hyphens, slashes and spaces are only a writing style.

  • 29296E1MB
  • 29296 E1 MB
