| Symbol | Value | Description |
|---|---|---|
| ≈m | 10 kg | Weight |
| nG | 2.900 1/min | Limiting speed |
| nϑr | 1.490 1/min | Reference speed |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
FAG

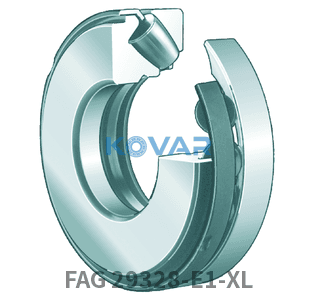

FAG 29328-E1-XL Axial spherical roller bearing 140 × 240 × 60 mm
Axial spherical roller bearing
Spherical Roller Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Spherical Roller Bearing
- Bore
- 140 mm mm
- Outer Ø
- 240 mm mm
- Width
- 60 mm mm
Overview
FAG 29328-E1-XL Spherical Roller Bearing is a heavy-duty bearing that tolerates shaft misalignment and deflection through spherical raceways and barrel-shaped rollers. It supports high radial load and axial load in both directions, making it suitable for mining, steel, paper, wind, and other shock-prone equipment.
The outer ring has a spherical raceway, while the inner ring carries two rows of rollers guided by a cage. This self-aligning structure compensates for minor shaft and housing misalignment during operation.
Key features
- Self-aligning capability for misalignment and shaft deflection
- High radial and bidirectional axial load capacity
- Stable operation under shock and vibration
- Long-life design for heavy-duty equipment
Typical applications
- Conveyor pulleys
- Crushers, screens, and mining equipment
- Steel and paper machinery
- Wind turbines and heavy machinery
Selection guidance
Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.
| Symbol | Value | Description |
|---|---|---|
| d | 140 mm | Bore diameter |
| D | 240 mm | Outside diameter |
| B | 60 mm | Width |
| r1, 2 min | 2,1 mm | Minimum chamfer dimension |
| Symbol | Value | Description |
|---|---|---|
| da min | 190 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 208 mm | Max. shoulder diameter for mounting, housing |
| ra max | 2,1 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
| Code | Description |
|---|---|
| 53,5 mm | Cage |
