  1. Home
  2. /Bearings
  3. /FAG 32324 Tapered Roller Bearing
FAG

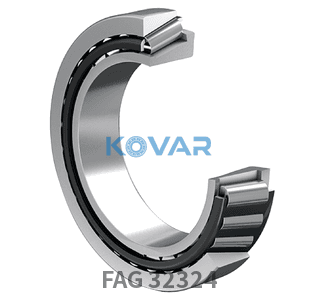

FAG 32324 FAG 32324 Tapered Roller Bearing
  • FAG 32324 FAG 32324 Tapered Roller Bearing

FAG

FAG 32324 Tapered Roller Bearing 120 × 260 × 90.5 mm

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

NWY2Q9KBSV
Category
Tapered Roller Bearing
Bore
120 mm
Outer Ø
260 mm
Width
90.5 mm

Overview

FAG 32324: a plain tapered roller bearing with no suffix measuring 120 × 260 × 90.5 mm (bore × OD × width).

The same specification comes one size down as 32322 (110 mm bore) and one size up as 32326 (130 mm bore). Looking for the 32324 size from another brand? Options include KOYO 32324, NSK 32324, SKF 32324 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m21.56 kgWeight
Cr670,000 NBasic dynamic load rating, radial
C0r970,000 NBasic static load rating, radial
Cur120,000 NFatigue load limit, radial
nG2,750 1/minLimiting speed
nϑr2,060 1/minReference speed
dbmin134 mmMinimum diameter of shaft shoulder
Cbmin21.5 mmMinimum axial space
a66 mmDistance between the apexes of the pressure cones
d1187 mmGuidance rib diameter of inner ring
Y00.84Static axial load factor
1Number of rows

Dimensions

SymbolValueDescription
d120 mmBore diameter
D260 mmOutside diameter
B90.5 mmWidth
B90.5 mmWidth
r1, 2 min4 mmMinimum chamfer dimension
B86 mmWidth inner ring
C69 mmWidth outer ring
Damin213 mmDa min

Mounting Dimensions

SymbolValueDescription
da max148 mmMax. shoulder diameter for mounting, inner ring
Da max246 mmMax. shoulder diameter for mounting, housing
ra max4 mmMax. fillet radius

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax200 °COperating temperature max.

Calculation Factors

SymbolValueDescription
e0.39Limit value Fa/Fr
Y1.53Dynamic axial load factor

Related Parts

CodeDescription
PNTolerance class
StandardCage

Product description

FAG 32324 Tapered Roller Bearing uses tapered rollers and raceways to handle combined radial and axial loads. It is commonly used in wheel hubs, gearboxes, industrial axles, and heavy equipment where shock load capacity and rigidity are required.

The inner ring, outer ring, tapered rollers, and cage are designed so their cone lines converge at a common point. A single-row bearing supports axial load in one direction, while paired mounting supports bidirectional axial load and preload settings.

Key features

  • ·Handles combined radial and axial loads
  • ·High rigidity and shock-load capability
  • ·Adjustable preload or endplay
  • ·Separable design for mounting and inspection

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to FAG 32324

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
