  1. Home
  2. /Bearings
  3. /FAG 32934 Tapered Roller Bearing
FAG

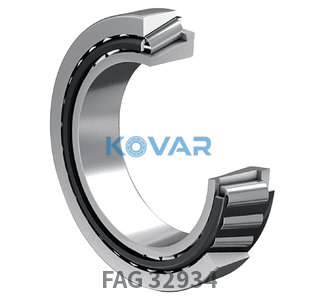

FAG 32934 FAG 32934 Tapered Roller Bearing
  • FAG 32934 FAG 32934 Tapered Roller Bearing

FAG

FAG 32934 Tapered Roller Bearing 170 × 230 × 38 mm

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

NWE85MC2KJ
Category
Tapered Roller Bearing
Bore
170 mm
Outer Ø
230 mm
Width
38 mm

Overview

The FAG 32934 is a plain tapered roller bearing with no suffix, 170 × 230 × 38 mm (bore × OD × width).

Kovar lists 2 FAG variants in the 170×230×38 mm size; the closest to the 32934 are 32934-P5 (tolerance class P5). The 32934 weighs 4.32 kg, compared with 4.4 kg for the 32934-P5.

The same specification comes one size down as 32932 (160 mm bore) and one size up as 32936 (180 mm bore). Parts from other brands with the same dimensions as the 32934 include KOYO 32934, NSK 32934J, NTN 32934, SKF 32934; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m4.32 kgWeight
Cr295,000 NBasic dynamic load rating, radial
C0r560,000 NBasic static load rating, radial
Cur60,000 NFatigue load limit, radial
nG2,850 1/minLimiting speed
nϑr1,790 1/minReference speed
dbmin180 mmMinimum diameter of shaft shoulder
Cbmin8 mmMinimum axial space
a42 mmDistance between the apexes of the pressure cones
d1199 mmGuidance rib diameter of inner ring
Y00.86Static axial load factor
1Number of rows

Dimensions

SymbolValueDescription
d170 mmBore diameter
D230 mmOutside diameter
B38 mmWidth
B38 mmWidth
r1, 2 min2.5 mmMinimum chamfer dimension
C30 mmWidth outer ring
Damin213 mmDa min

Mounting Dimensions

SymbolValueDescription
da max183 mmMax. shoulder diameter for mounting, inner ring
Da max220 mmMax. shoulder diameter for mounting, housing
ra max2.5 mmMax. fillet radius

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax200 °COperating temperature max.

Calculation Factors

SymbolValueDescription
e0.38Limit value Fa/Fr
Y1.57Dynamic axial load factor

Related Parts

CodeDescription
P6XTolerance class
StandardCage

Product description

FAG 32934 Tapered Roller Bearing uses tapered rollers and raceways to handle combined radial and axial loads. It is commonly used in wheel hubs, gearboxes, industrial axles, and heavy equipment where shock load capacity and rigidity are required.

The inner ring, outer ring, tapered rollers, and cage are designed so their cone lines converge at a common point. A single-row bearing supports axial load in one direction, while paired mounting supports bidirectional axial load and preload settings.

Key features

  • ·Handles combined radial and axial loads
  • ·High rigidity and shock-load capability
  • ·Adjustable preload or endplay
  • ·Separable design for mounting and inspection

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to FAG 32934

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • KOYO
    KOYO KOYO 32934 Tapered Roller Bearing

    KOYO

    32934

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 32934J Tapered Roller Bearing

    NSK

    32934J

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 32934 Tapered Roller Bearing

    NTN

    32934

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32934 Tapered Roller Bearing

    SKF

    32934

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • TIMKEN
    TIMKEN TIMKEN 32934 Tapered Roller Bearing

    TIMKEN

    32934

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 32934JR Tapered Roller Bearing

    KOYO

    32934JR

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 32934XU Tapered Roller Bearing

    NTN

    32934XU

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as FAG 32934, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 32934-P5 Tapered Roller Bearing

    FAG

    32934-P5

    Tapered Roller Bearing

    US$4,176.70

    Excl. VAT

    ●

    In stock (1)

More part numbers near FAG 32934

Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.

  • FAG
    FAG FAG 32932 Tapered Roller Bearing

    FAG

    32932

    Tapered Roller Bearing

    US$280.27

    Excl. VAT

    ●

    In stock (6)

  • FAG
    FAG FAG 32936 Tapered Roller Bearing

    FAG

    32936

    Tapered Roller Bearing

    US$304.54

    Excl. VAT

    ●

    In stock (5)

  • FAG
    FAG FAG 32930 Tapered Roller Bearing

    FAG

    32930

    Tapered Roller Bearing

    US$234.28

    Excl. VAT

    ●

    In stock (13)

  • FAG
    FAG FAG 32938-XL Tapered Roller Bearing

    FAG

    32938-XL

    Tapered Roller Bearing

    US$305.56

    Excl. VAT

    ●

    In stock (3)

  • FAG
    FAG FAG 32926 Tapered Roller Bearing

    FAG

    32926

    Tapered Roller Bearing

    US$72.47

    Excl. VAT

    ●

    In stock (8)

  • FAG
    FAG FAG 32938 Tapered Roller Bearing

    FAG

    32938

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 32928 Tapered Roller Bearing

    FAG

    32928

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 32940 Tapered Roller Bearing

    FAG

    32940

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
