  1. Home
  2. /Bearings
  3. /FAG 33013 Tapered Roller Bearing
FAG

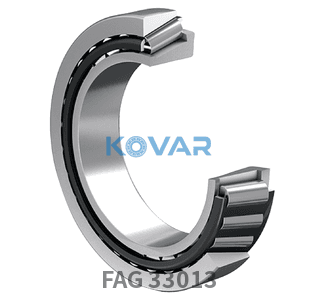

FAG 33013 FAG 33013 Tapered Roller Bearing
  • FAG 33013 FAG 33013 Tapered Roller Bearing

FAG

FAG 33013 Tapered Roller Bearing 65 × 100 × 27 mm

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

NWATK6V5AK
Category
Tapered Roller Bearing
Bore
65 mm
Outer Ø
100 mm
Width
27 mm

Overview

FAG 33013: a plain tapered roller bearing with no suffix measuring 65 × 100 × 27 mm (bore × OD × width).

Kovar lists 3 FAG variants in the 65×100×27 mm size; the closest to the 33013 are 33013-XL, 33013-DY. Limiting speed is 6,900 rpm for the 33013 versus 8,300 rpm for the 33013-XL.

The same specification comes one size down as 33012 (60 mm bore) and one size up as 33014 (70 mm bore). Looking for the 33013 size from another brand? Options include KOYO 33013, NSK 33013, NTN 33013A, SKF 33013 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m0.759 kgWeight
Cr100,000 NBasic dynamic load rating, radial
C0r161,000 NBasic static load rating, radial
Cur20,800 NFatigue load limit, radial
nG6,900 1/minLimiting speed
nϑr4,300 1/minReference speed
dbmin72 mmMinimum diameter of shaft shoulder
Cbmin6 mmMinimum axial space
a21 mmDistance between the apexes of the pressure cones
d184.6 mmGuidance rib diameter of inner ring
Y00.95Static axial load factor
1Number of rows

Dimensions

SymbolValueDescription
d65 mmBore diameter
D100 mmOutside diameter
B27 mmWidth
B27 mmWidth
r1, 2 min1.5 mmMinimum chamfer dimension
C21 mmWidth outer ring
Damin89 mmDa min

Mounting Dimensions

SymbolValueDescription
da max72 mmMax. shoulder diameter for mounting, inner ring
Da max93 mmMax. shoulder diameter for mounting, housing
ra max1.5 mmMax. fillet radius

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax120 °COperating temperature max.

Calculation Factors

SymbolValueDescription
e0.35Limit value Fa/Fr
Y1.72Dynamic axial load factor

Related Parts

CodeDescription
P6XTolerance class
StandardCage

Product description

FAG 33013 Tapered Roller Bearing uses tapered rollers and raceways to handle combined radial and axial loads. It is commonly used in wheel hubs, gearboxes, industrial axles, and heavy equipment where shock load capacity and rigidity are required.

The inner ring, outer ring, tapered rollers, and cage are designed so their cone lines converge at a common point. A single-row bearing supports axial load in one direction, while paired mounting supports bidirectional axial load and preload settings.

Key features

  • ·Handles combined radial and axial loads
  • ·High rigidity and shock-load capability
  • ·Adjustable preload or endplay
  • ·Separable design for mounting and inspection

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Datasheet

📄datasheet pdf download

RFQ
