  1. Home
  2. /Bearings
  3. /FAG 33206 Tapered Roller Bearing
FAG

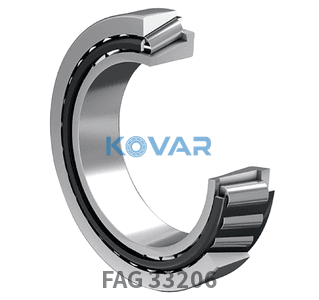

FAG 33206 FAG 33206 Tapered Roller Bearing
  • FAG 33206 FAG 33206 Tapered Roller Bearing

FAG

FAG 33206 Tapered Roller Bearing 30 × 62 × 25 mm

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXWJ56NMEN
Category
Tapered Roller Bearing
Bore
30 mm
Outer Ø
62 mm
Width
25 mm

Overview

FAG 33206: a plain tapered roller bearing with no suffix measuring 30 × 62 × 25 mm (bore × OD × width).

Kovar lists 3 FAG variants in the 30×62×25 mm size; the closest to the 33206 are 33206-XL, 33206-DY. Limiting speed is 11,800 rpm for the 33206 versus 14,300 rpm for the 33206-XL.

The same specification comes one size down as 33205 (25 mm bore) and one size up as 33207 (35 mm bore). Looking for the 33206 size from another brand? Options include KOYO 33206, NSK 33206, NTN 33206, SKF 33206 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m0.342 kgWeight
Cr65,000 NBasic dynamic load rating, radial
C0r77,000 NBasic static load rating, radial
Cur9,600 NFatigue load limit, radial
nG11,800 1/minLimiting speed
nϑr7,100 1/minReference speed
dbmin36 mmMinimum diameter of shaft shoulder
Cbmin5.5 mmMinimum axial space
a16 mmDistance between the apexes of the pressure cones
d146.1 mmGuidance rib diameter of inner ring
Y00.97Static axial load factor
1Number of rows

Dimensions

SymbolValueDescription
d30 mmBore diameter
D62 mmOutside diameter
B25 mmWidth
r1, 2 min1 mmMinimum chamfer dimension
C19.5 mmWidth outer ring
Damin53 mmDa min

Mounting Dimensions

SymbolValueDescription
da max36 mmMax. shoulder diameter for mounting, inner ring
Da max56 mmMax. shoulder diameter for mounting, housing
ra max1 mmMax. fillet radius

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax120 °COperating temperature max.

Calculation Factors

SymbolValueDescription
e0.34Limit value Fa/Fr
Y1.76Dynamic axial load factor

Related Parts

CodeDescription
P6XTolerance class
StandardCage

Product description

FAG 33206 Tapered Roller Bearing uses tapered rollers and raceways to handle combined radial and axial loads. It is commonly used in wheel hubs, gearboxes, industrial axles, and heavy equipment where shock load capacity and rigidity are required.

The inner ring, outer ring, tapered rollers, and cage are designed so their cone lines converge at a common point. A single-row bearing supports axial load in one direction, while paired mounting supports bidirectional axial load and preload settings.

Key features

  • ·Handles combined radial and axial loads
  • ·High rigidity and shock-load capability
  • ·Adjustable preload or endplay
  • ·Separable design for mounting and inspection

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Datasheet

📄datasheet pdf download
