  1. Home
  2. /Bearings
  3. /FAG 33219 Tapered Roller Bearing
FAG

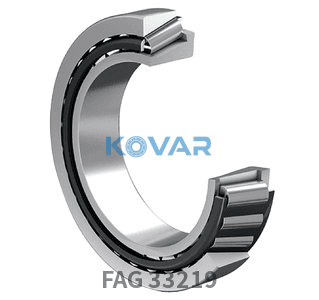

FAG 33219 FAG 33219 Tapered Roller Bearing
  • FAG 33219 FAG 33219 Tapered Roller Bearing

FAG

FAG 33219 Tapered Roller Bearing 95 × 170 × 58 mm

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXW6S83H2D
Category
Tapered Roller Bearing
Bore
95 mm
Outer Ø
170 mm
Width
58 mm

Overview

FAG 33219: a plain tapered roller bearing with no suffix measuring 95 × 170 × 58 mm (bore × OD × width).

Kovar lists 2 FAG variants in the 95×170×58 mm size; the closest to the 33219 are 33219-H. Limiting speed is 3,950 rpm for the 33219 versus 3,160 rpm for the 33219-H.

The same specification comes one size down as 33217 (85 mm bore) and one size up as 33220 (100 mm bore).

Main Dimensions & Performance

SymbolValueDescription
≈m5.46 kgWeight
Cr375,000 NBasic dynamic load rating, radial
C0r560,000 NBasic static load rating, radial
Cur67,000 NFatigue load limit, radial
nG3,950 1/minLimiting speed
nϑr2,850 1/minReference speed
dbmin107 mmMinimum diameter of shaft shoulder
Cbmin14 mmMinimum axial space
a43 mmDistance between the apexes of the pressure cones
d1132 mmGuidance rib diameter of inner ring
Y00.81Static axial load factor
1Number of rows

Dimensions

SymbolValueDescription
d95 mmBore diameter
D170 mmOutside diameter
B58 mmWidth
B58 mmWidth
r1, 2 min3 mmMinimum chamfer dimension
C44 mmWidth outer ring
Damin144 mmDa min

Mounting Dimensions

SymbolValueDescription
da max107 mmMax. shoulder diameter for mounting, inner ring
Da max158 mmMax. shoulder diameter for mounting, housing
ra max3 mmMax. fillet radius

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax120 °COperating temperature max.

Calculation Factors

SymbolValueDescription
e0.41Limit value Fa/Fr
Y1.47Dynamic axial load factor

Related Parts

CodeDescription
P6XTolerance class
StandardCage

Product description

FAG 33219 Tapered Roller Bearing uses tapered rollers and raceways to handle combined radial and axial loads. It is commonly used in wheel hubs, gearboxes, industrial axles, and heavy equipment where shock load capacity and rigidity are required.

The inner ring, outer ring, tapered rollers, and cage are designed so their cone lines converge at a common point. A single-row bearing supports axial load in one direction, while paired mounting supports bidirectional axial load and preload settings.

Key features

  • ·Handles combined radial and axial loads
  • ·High rigidity and shock-load capability
  • ·Adjustable preload or endplay
  • ·Separable design for mounting and inspection

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Datasheet

📄datasheet pdf download

RFQ

Same size as FAG 33219, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 33219-H Tapered Roller Bearing

    FAG

    33219-H

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
