  1. Home
  2. /Bearings
  3. /FAG 51405 Thrust Ball Bearing
FAG
FAG 51405 FAG 51405 Thrust Ball Bearing
  • FAG 51405 FAG 51405 Thrust Ball Bearing

FAG

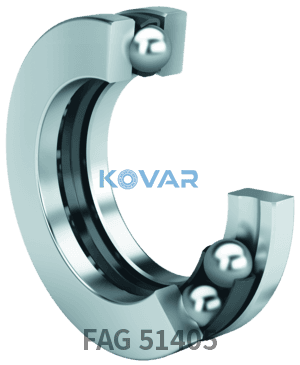

FAG 51405 Thrust Ball Bearing 25 × 60 × 24 mm

Axial deep groove ball bearing

Thrust Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXZE8KJ8DK
Category
Thrust Ball Bearing
Bore
25 mm
Outer Ø
60 mm
Width
24 mm

Overview

The FAG 51405 is a plain thrust ball bearing with no suffix, 25 × 60 × 24 mm (bore × OD × width).

The same specification also comes in an adjacent size: 51406 (30 mm bore). Parts from other brands with the same dimensions as the 51405 include KOYO 51405, NSK 51405, NTN 51405, SKF 51405; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m0.317 kgWeight
nG4,700 1/minLimiting speed
nϑr10,900 1/minReference speed
Ca43,000 NAxial Dynamic Load Rating (Ca)
C0a66,000 NAxial Static Load Rating (C0a)
Cua3,000 NCua
ramax1 mmMaximum filled radius
D127 mmInner diameter housing washer
d160 mmOuter diameter shaft washer
A0.032Minimum load factor
S0Dimensional / heat stabilization

Dimensions

SymbolValueDescription
d25 mmBore diameter
D60 mmOutside diameter
B24 mmWidth
r1, 2 min1 mmMinimum chamfer dimension

Mounting Dimensions

SymbolValueDescription
da min46 mmMin. shoulder diameter for mounting, inner ring
Da max39 mmMax. shoulder diameter for mounting, housing

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax150 °COperating temperature max.

Related Parts

CodeDescription
JPCage
PNTolerance class
Standard bearing steelMaterial

Product description

FAG 51405 Thrust Ball Bearing is designed specifically to support axial load with a simple, low-friction structure. It is suitable for vertical shafts, rotary tables, jacks, and low- to medium-speed equipment where axial load control is more important than radial load capacity.

The bearing consists of shaft washer, housing washer, and ball-and-cage assembly. Single-direction types support axial load in one direction, while double-direction types support axial load in both directions; they are not intended for radial loading.

Key features

  • ·Dedicated axial load support
  • ·Simple structure with low friction
  • ·Single- and double-direction designs
  • ·Separable components for easy mounting and inspection

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to FAG 51405

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • KOYO
    KOYO KOYO 51405 Thrust Ball Bearing

    KOYO

    51405

    Thrust Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 51405 Thrust Ball Bearing

    NSK

    51405

    Thrust Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 51405 Thrust Ball Bearing

    NTN

    51405

    Thrust Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 51405 Thrust Ball Bearing

    SKF

    51405

    Thrust Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

More part numbers near FAG 51405

Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.
