  1. Home
  2. /Bearings
  3. /FAG 52411 Thrust Ball Bearing
FAG

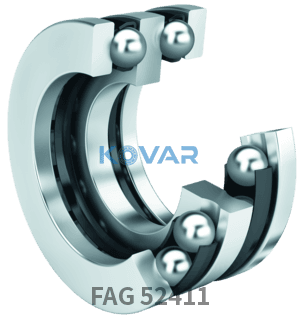

FAG 52411 FAG 52411 Thrust Ball Bearing
  • FAG 52411 FAG 52411 Thrust Ball Bearing

FAG

FAG 52411 Thrust Ball Bearing 45 × 120 × 87 mm

Axial deep groove ball bearing

Thrust Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXVCV1N7X4
Category
Thrust Ball Bearing
Bore
45 mm
Outer Ø
120 mm
Width
87 mm

Overview

The FAG 52411 is a thrust ball bearing, 45 × 120 × 87 mm (bore × OD × width).

Main Dimensions & Performance

SymbolValueDescription
≈m4.7 kgWeight
nG2,340 1/minLimiting speed
nϑr5,600 1/minReference speed
Ca167,000 NAxial Dynamic Load Rating (Ca)
C0a315,000 NAxial Static Load Rating (C0a)
Cua14,400 NCua
ra1max0.6 mmMaximum filled radius
D157 mmInner diameter housing washer
A0.59Minimum load factor
S0Dimensional / heat stabilization

Dimensions

SymbolValueDescription
d45 mmBore diameter
D120 mmOutside diameter
B87 mmWidth
r1, 2 min1.5 mmMinimum chamfer dimension

Mounting Dimensions

SymbolValueDescription
da max55 mmMax. shoulder diameter for mounting, inner ring
Da max81 mmMax. shoulder diameter for mounting, housing

Temperature Range

SymbolValueDescription
Tmin-30 °COperating temperature min.
Tmax150 °COperating temperature max.

Related Parts

CodeDescription
JPCage
PNTolerance class
Standard bearing steelMaterial

Product description

FAG 52411 Thrust Ball Bearing is designed specifically to support axial load with a simple, low-friction structure. It is suitable for vertical shafts, rotary tables, jacks, and low- to medium-speed equipment where axial load control is more important than radial load capacity.

The bearing consists of shaft washer, housing washer, and ball-and-cage assembly. Single-direction types support axial load in one direction, while double-direction types support axial load in both directions; they are not intended for radial loading.

Key features

  • ·Dedicated axial load support
  • ·Simple structure with low friction
  • ·Single- and double-direction designs
  • ·Separable components for easy mounting and inspection

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Datasheet

📄datasheet pdf download
