| Symbol | Value | Description |
|---|---|---|
| ≈m | 0,376 kg | Weight |
| nG | 4.850 1/min | Limiting speed |
| nϑr | 8.200 1/min | Reference speed |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
FAG

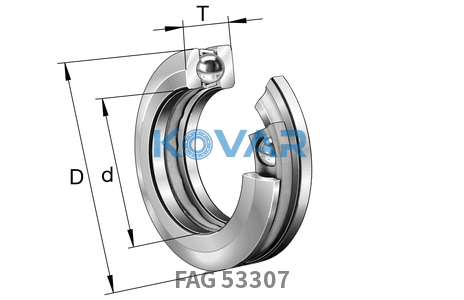

FAG 53307 Axial deep groove ball bearing 35 × 68 × 25.6 mm
Axial deep groove ball bearing
Deep Groove Ball Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Deep Groove Ball Bearing
- Bore
- 35 mm mm
- Outer Ø
- 68 mm mm
- Width
- 25,6 mm mm
Overview
FAG 53307 Deep Groove Ball Bearing is a versatile rolling bearing for stable, low-friction rotation in a wide range of industrial equipment. It primarily supports radial load while accommodating moderate axial load in both directions, making it a standard choice for motors, pumps, gearboxes, and general machinery.
The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.
Key features
- Highly versatile standard bearing type
- Low friction and stable high-speed rotation
- Supports radial load and moderate bidirectional axial load
- Available in open, shielded, and sealed designs
Typical applications
- Electric motors and generators
- Pumps, fans, and blowers
- Gearboxes and reducers
- Conveyors and general industrial machinery
Selection guidance
Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.
| Symbol | Value | Description |
|---|---|---|
| d | 35 mm | Bore diameter |
| D | 68 mm | Outside diameter |
| B | 25,6 mm | Width |
| r1, 2 min | 1 mm | Minimum chamfer dimension |
| Symbol | Value | Description |
|---|---|---|
| da min | 55 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 52 mm | Max. shoulder diameter for mounting, housing |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
| Code | Description |
|---|---|
| JP | Cage |
| PN | Tolerance class |
| Standard bearing steel | Material |
