| Symbol | Value | Description |
|---|---|---|
| ≈m | 0,59 kg | Weight |
| Cr | 48.000 N | Basic dynamic load rating, radial |
| C0r | 29.000 N | Basic static load rating, radial |
| Cur | 3.100 N | Fatigue load limit, radial |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
FAG

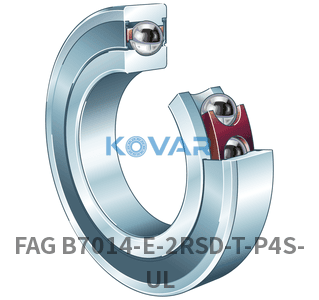

FAG B7014-E-2RSD-T-P4S-UL Spindle bearings Angular Contact Ball Bearing 70 × 110 × 20 mm
Spindle bearings
Angular Contact Ball Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Angular Contact Ball Bearing
- Bore
- 70 mm mm
- Outer Ø
- 110 mm mm
- Width
- 20 mm mm
Overview
FAG B7014-E-2RSD-T-P4S-UL Angular Contact Ball Bearing supports combined radial and one-direction axial load through a defined contact angle. It is a high-speed, high-precision choice for pumps, compressors, machine tools, and spindle-related positions where axial rigidity and rotational accuracy matter.
The inner and outer ring raceways are offset to create a contact angle. Single-row, double-row, or matched arrangements can be used to meet axial load direction, preload, and rigidity requirements.
Key features
- Supports combined radial and one-direction axial load
- High-speed and high-accuracy operation
- Preload and rigidity adjustable through matched mounting
- Suitable for precision rotating assemblies
Typical applications
- Machine tool spindles and support shafts
- Pumps and compressors
- High-speed motors
- Precision gearboxes and robot drives
Selection guidance
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
| Symbol | Value | Description |
|---|---|---|
| d | 70 mm | Bore diameter |
| D | 110 mm | Outside diameter |
| B | 20 mm | Width |
| D1 | 102 mm | Shoulder diameter, outer ring |
| r1, 2 min | 1,1 mm | Minimum chamfer dimension |
| Symbol | Value | Description |
|---|---|---|
| ra max | 1 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
| Code | Description |
|---|---|
| P4S | Tolerance class |
| T | Cage |
| GA21 | Lubricant |
