FAG
Spindle bearings
Angular Contact Ball Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
FAG HC71918-E-T-P4S-UL Angular Contact Ball Bearing supports combined radial and one-direction axial load through a defined contact angle. It is a high-speed, high-precision choice for pumps, compressors, machine tools, and spindle-related positions where axial rigidity and rotational accuracy matter.
The inner and outer ring raceways are offset to create a contact angle. Single-row, double-row, or matched arrangements can be used to meet axial load direction, preload, and rigidity requirements.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0,535 kg | Weight |
| Cr | 22.000 N | Basic dynamic load rating, radial |
| C0r | 16.900 N | Basic static load rating, radial |
| Cur | 1.310 N | Fatigue load limit, radial |
| nG | 26.000 1/min | Limiting speed |

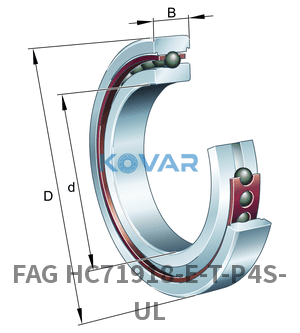

| Symbol | Value | Description |
|---|---|---|
| d | 90 mm | Bore diameter |
| D | 125 mm | Outside diameter |
| B | 18 mm | Width |
| D1 | 119 mm | Shoulder diameter, outer ring |
| r1, 2 min | 1,1 mm | Minimum chamfer dimension |
| Symbol | Value | Description |
|---|---|---|
| ra max | 0,6 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
| Code | Description |
|---|---|
| Without | Sealing type |
| T | Cage |
| P4S | Tolerance class |
The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:
