| Symbol | Value | Description |
|---|---|---|
| ≈m | 2,179 kg | Weight |
| Cr | 46.500 N | Basic dynamic load rating, radial |
| C0r | 36.500 N | Basic static load rating, radial |
| Cur | 2.410 N | Fatigue load limit, radial |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
FAG

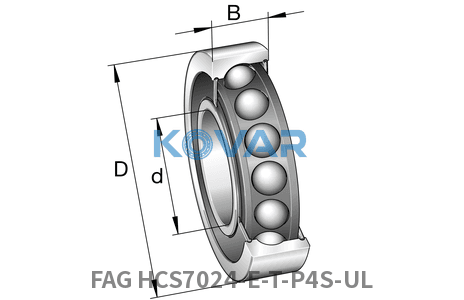

FAG HCS7024-E-T-P4S-UL Spindle bearings 120 × 180 × 28 mm
Spindle bearings
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Bore
- 120 mm mm
- Outer Ø
- 180 mm mm
- Width
- 28 mm mm
Overview
FAG HCS7024-E-T-P4S-UL Industrial Bearing is a core machine element that reduces shaft friction and supports loads to improve equipment efficiency and service life. It should be selected according to load direction, speed, and mounting space in motors, pumps, gearboxes, conveyors, and other machinery.
Bearings typically consist of inner ring, outer ring, rolling elements, cage, or sliding contact surfaces, with seals, shields, housings, or sleeves added depending on type. Lubrication and sealing conditions have a major impact on performance.
Key features
- Reduces rotational friction and supports load
- Covers various load directions and speed conditions
- Standard dimensions support easy replacement
- Sealing, lubrication, and clearance options available
Typical applications
- Motors, pumps, and fans
- Reducers and industrial gearboxes
- Conveyors and handling equipment
- General industrial machinery maintenance
Selection guidance
Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.
| Symbol | Value | Description |
|---|---|---|
| d | 120 mm | Bore diameter |
| D | 180 mm | Outside diameter |
| B | 28 mm | Width |
| D1 | 169 mm | Shoulder diameter, outer ring |
| r1, 2 min | 2 mm | Minimum chamfer dimension |
| Symbol | Value | Description |
|---|---|---|
| ra max | 2 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
| Code | Description |
|---|---|
| 2RSD | Sealing type |
| T | Cage |
| P4S | Tolerance class |
