FAG
Lock Nut
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

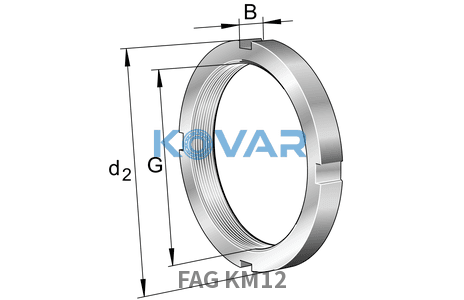

The FAG KM12 is a lock nut, 60 × 80 × 11 mm (bore × OD × width).
Parts from other brands with the same dimensions as the KM12 include SKF KM12; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.192 kg | Weight |
| G | M60x2 | Thread |
| d2 | 80 mm | d2 |
| d1 | 73 mm | d1 |
| A^a | 74 mm | A^a |
| F | 90,000 N | F |
| MB12 | Fuse |
| Symbol | Value | Description |
|---|---|---|
| d | 60 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| B | 11 mm | Width |
| Code | Description |
|---|---|
| Standard bearing steel | Material |
FAG KM12 Lock Nut (Bearing Locknut) is a precision threaded fastener that secures a bearing axially on a shaft or sleeve. Typical KM and AN series nuts clamp the inner ring, are used with adapter and withdrawal sleeves, and combine with a tab (lock) washer to prevent loosening.
The steel nut has a precision metric (or inch) thread and axial slots; the tab of a lock washer is bent into a slot to lock rotation. KM types pair with MB washers, while AN types use a self-locking feature or a separate locking part.
Check nut designation (e.g., KM 0, AN 08), thread pitch, shaft/thread diameter, matching washer (MB) size, and sleeve type.
