  1. Home
  2. /Bearings
  3. /Bearing Accessories
  4. /FAG KM38 Lock Nut
FAG
FAG KM38 FAG KM38 Lock Nut
  • FAG KM38 FAG KM38 Lock Nut

FAG

FAG KM38 Lock Nut 190 × 240 × 28 mm

Lock Nut

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FX332TMXQJ
Category
Lock Nut
Bore
190 mm
Outer Ø
240 mm
Width
28 mm

Overview

The FAG KM38 is a lock nut, 190 × 240 × 28 mm (bore × OD × width).

Parts from other brands with the same dimensions as the KM38 include SKF KM38; check that the seal and clearance suffixes match before substituting.

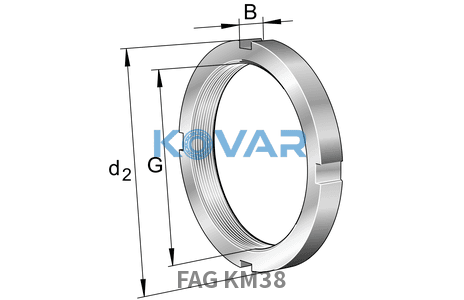

Main Dimensions & Performance

SymbolValueDescription
≈m3.517 kgWeight
GM190x3Thread
d2240 mmd2
d1214 mmd1
F830,000 NF
MB38Fuse

Dimensions

SymbolValueDescription
d190 mmBore diameter
D240 mmOutside diameter
B28 mmWidth

Related Parts

CodeDescription
Standard bearing steelMaterial

Product description

FAG KM38 Lock Nut (Bearing Locknut) is a precision threaded fastener that secures a bearing axially on a shaft or sleeve. Typical KM and AN series nuts clamp the inner ring, are used with adapter and withdrawal sleeves, and combine with a tab (lock) washer to prevent loosening.

The steel nut has a precision metric (or inch) thread and axial slots; the tab of a lock washer is bent into a slot to lock rotation. KM types pair with MB washers, while AN types use a self-locking feature or a separate locking part.

Key features

  • ·Positive axial clamping of bearings on shafts and sleeves
  • ·Secured against loosening by an MB tab washer
  • ·Used to mount adapter and withdrawal sleeves
  • ·Precision thread maintains accurate position and preload

Typical applications

  • ·Self-aligning bearings on adapter sleeves
  • ·Bearing retention on shafts and spindles
  • ·Pump, gearbox, and motor assemblies
  • ·Shaft-end clamping in general rotating machinery

Selection guidance

Check nut designation (e.g., KM 0, AN 08), thread pitch, shaft/thread diameter, matching washer (MB) size, and sleeve type.

Datasheet

📄datasheet pdf download
