FAG
Lock Nut
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

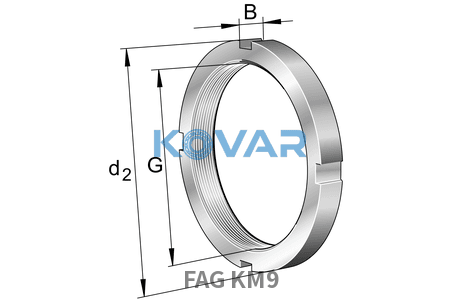

The FAG KM9 is a lock nut, 45 × 65 × 10 mm (bore × OD × width).
Parts from other brands with the same dimensions as the KM9 include SKF KM9; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.131 kg | Weight |
| G | M45x1,5 | Thread |
| d2 | 65 mm | d2 |
| d1 | 56 mm | d1 |
| A^a | 60 mm | A^a |
| F | 77,000 N | F |
| MB9 | Fuse |
| Symbol | Value | Description |
|---|---|---|
| d | 45 mm | Bore diameter |
| D | 65 mm | Outside diameter |
| B | 10 mm | Width |
| Code | Description |
|---|---|
| Standard bearing steel | Material |
FAG KM9 Lock Nut (Bearing Locknut) is a precision threaded fastener that secures a bearing axially on a shaft or sleeve. Typical KM and AN series nuts clamp the inner ring, are used with adapter and withdrawal sleeves, and combine with a tab (lock) washer to prevent loosening.
The steel nut has a precision metric (or inch) thread and axial slots; the tab of a lock washer is bent into a slot to lock rotation. KM types pair with MB washers, while AN types use a self-locking feature or a separate locking part.
Check nut designation (e.g., KM 0, AN 08), thread pitch, shaft/thread diameter, matching washer (MB) size, and sleeve type.
