IBC
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

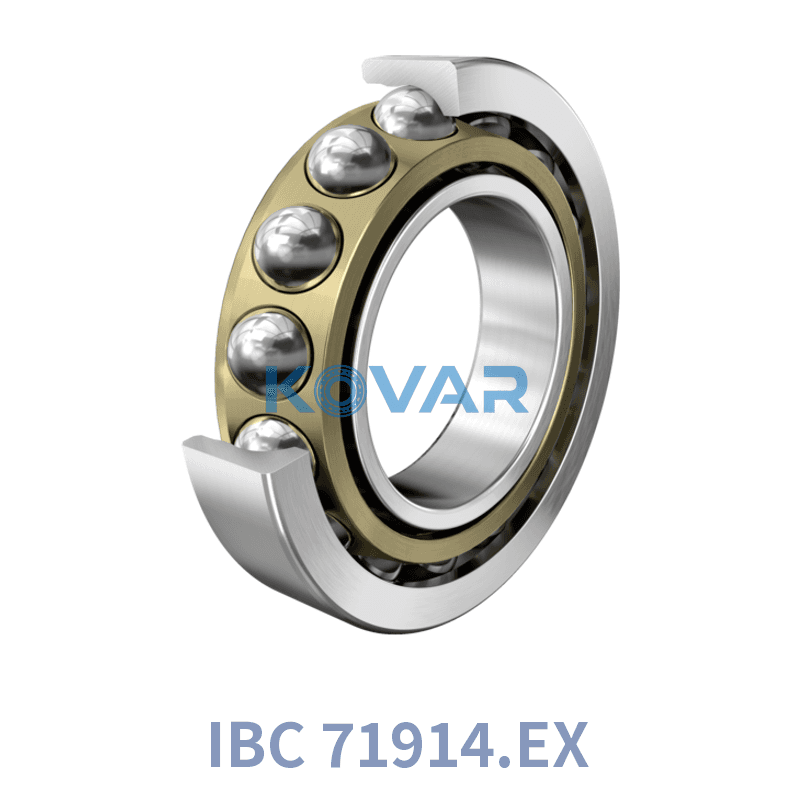

IBC 71914.EX Angular Contact Ball Bearing supports combined radial and one-direction axial load through a defined contact angle. It is a high-speed, high-precision choice for pumps, compressors, machine tools, and spindle-related positions where axial rigidity and rotational accuracy matter.
The inner and outer ring raceways are offset to create a contact angle. Single-row, double-row, or matched arrangements can be used to meet axial load direction, preload, and rigidity requirements.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
| Symbol | Value | Description |
|---|---|---|
| Cr | 22150 N | Basic dynamic load rating, radial |
| C0r | 22700 N | Basic static load rating, radial |
| Cu | 841 N | Fatigue limit load |
| nG | 14300 1/min | Limiting speed (grease) |
| nO | 21700 1/min | Limiting speed (oil-air) |
| ≈m | 0.345 kg | Weight |
| α | 25 ° | Contact angle |
| Symbol | Value | Description |
|---|---|---|
| d | 70 mm | Bore diameter |
| D | 100 mm | Outside diameter |
| B | 16 mm | Width |
| dpi | 80.9 mm | Injection diameter (oil-air lubrication) |
| a | 28 mm | Effective load centre |
| d1 | 80.4 mm | Shoulder diameter, inner ring |
| D1 | 89.8 mm | Shoulder diameter, outer ring |
| r1,2 min | 0.6 mm | Minimum chamfer dimension |
| r3,4 min | 0.3 mm | Minimum chamfer dimension, side face |
| Symbol | Value | Description |
|---|---|---|
| da min | 76 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 94 mm | Max. shoulder diameter for mounting, housing |
| Db max | 94.8 mm | Max. shoulder diameter, sealed side |
| ra max | 0.6 mm | Max. fillet radius |
| rb max | 0.3 mm | Max. fillet radius, side face |
| Symbol | Value | Description |
|---|---|---|
| Fv X | 70 N | Preload force — class X (extra light) |
| Sa X | 130 N/μm | Axial stiffness — class X (extra light) |
| Sr X | 250 N/μm | Radial stiffness — class X (extra light) |
| FAK X | 200 N | Unloading force — class X (extra light) |
| Fv L | 140 N | Preload force — class L (light) |
| Sa L | 160 N/μm | Axial stiffness — class L (light) |
| Sr L | 330 N/μm | Radial stiffness — class L (light) |
| FAK L | 400 N | Unloading force — class L (light) |
| Fv M | 320 N | Preload force — class M (medium) |
| Sa M | 220 N/μm | Axial stiffness — class M (medium) |
| Sr M | 450 N/μm | Radial stiffness — class M (medium) |
| FAK M | 900 N | Unloading force — class M (medium) |
| Fv H | 640 N | Preload force — class H (high) |
| Sa H | 300 N/μm | Axial stiffness — class H (high) |
| Sr H | 600 N/μm | Radial stiffness — class H (high) |
| FAK H | 1800 N | Unloading force — class H (high) |
| Code | Description |
|---|---|
| 100Cr6 | Rolling element material |
| yes | Direct oil lubrication possible |
| yes | Sealing available (2RSZ) |
| MBA 70 | Recommended precision locknut |
| Single row high precision angular contact ball bearing | Product type |
