| Symbol | Value | Description |
|---|---|---|
| ≈m | 3,781 kg | Weight |
| nG | 1.800 1/min | Limiting speed |
| nϑr | 710 1/min | Reference speed |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
INA

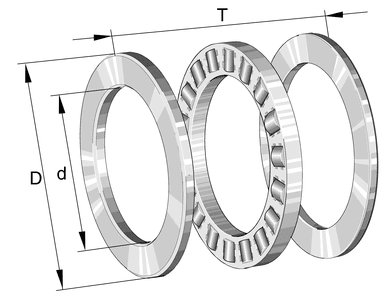

INA 81226-TV Axial cylindrical r. Cylindrical Roller Bearing 130 × 190 × 45 mm
Axial cylindrical r.
Cylindrical Roller Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Cylindrical Roller Bearing
- Bore
- 130 mm mm
- Outer Ø
- 190 mm mm
- Width
- 45 mm mm
Overview
INA 81226-TV Cylindrical Roller Bearing is designed for high radial load capacity through line contact between rollers and raceways. It is suitable for rigid, heavy-duty applications such as motors, gearboxes, rolling mills, and machine tools, with N, NU, NJ, and NUP designs offering different axial locating functions.
Cylindrical rollers and a cage are arranged between inner and outer ring raceways. Depending on flange configuration, the bearing can be separable and may support axial load in one or both directions.
Key features
- High radial load capacity
- Rigid performance for high-speed operation
- Separable design for easier mounting
- Axial locating capability by design variant
Typical applications
- Industrial electric motors
- Gearboxes and reducers
- Machine tool spindle support positions
- Rolling mills, paper machines, and heavy machinery
Selection guidance
Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.
| Symbol | Value | Description |
|---|---|---|
| d | 130 mm | Bore diameter |
| D | 190 mm | Outside diameter |
| B | 45 mm | Width |
| r1, 2 min | 1,5 mm | Minimum chamfer dimension |
| Symbol | Value | Description |
|---|---|---|
| da min | 181 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 137 mm | Max. shoulder diameter for mounting, housing |
| ra max | 1,5 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
| Code | Description |
|---|---|
| K81226-TV | Cage |
| Standard bearing steel | Material |
| Tolerance class P0/PN2 / ABEC 1 | Tolerance class |
