INA
Radial Insert Ball Bearing
From US$8.60
Excl. VAT| Spec | Price | Quantity |
|---|---|---|
| ina:GAY25-XL-NPP-B | US$8.60 |
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

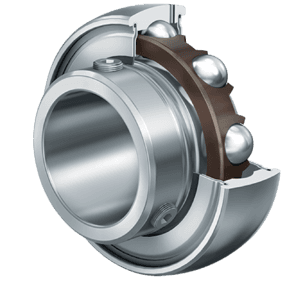

INA GAY25-XL-NPP-B Radial Insert Ball Bearing is an easy-mount ball bearing used in housing units or directly fixed on shafts. Based on deep groove ball bearing geometry, it adds locking devices and seals to simplify maintenance in agricultural machines, conveyors, fans, and handling equipment.
A spherical outer ring and shaft-locking device allow the bearing to compensate for static misalignment when combined with a matching housing. Sealed and lubricated variants are suitable for dusty or wet operating environments.
Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.
| Symbol | Value | Description |
|---|---|---|
| d | 25 mm | Bore diameter |
| DSP | 52 mm | Outside diameter |
| B | 27 mm | Width |
| C0r | 7.800 N | Basic static load rating, radial |
| Cur | 410 N | Fatigue load limit, radial |
| Cr | 14.000 N | Basic dynamic load rating, radial |
| ≈m | 0,15 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| C | 15 mm | Width, outer ring |
| S | 7,5 mm | Distance raceway |
| d1 | 33,5 mm | Rib diameter inner ring |
| d2 | 30,4 mm | Rib diameter sealing inner ring |
| Ca | 3,9 mm | Distance to lubrication hole |
| A | 5 mm | Distance thread |
| W | 2,5 mm | Width of flats |
| Symbol | Value | Description |
|---|---|---|
| f0 | 13,8 | Calculation factor |
