| Symbol | Value | Description |
|---|---|---|
| d | 40 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| B | 42,9 mm | Width |
| Cr | 32.500 N | Dynamic load rating |
| C0r | 19.800 N | Static load rating |
| ≈m | 0,73 kg | Weight |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
INA

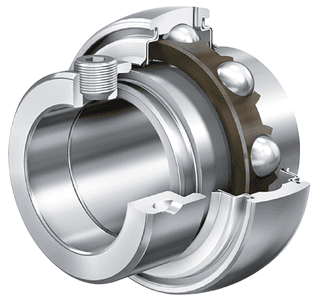

INA GE40-XL-KRR-B Radial Insert Ball Bearing 40 × 80 × 42.9 mm
Radial Insert Ball Bearing
From US$28.36
Excl. VATina:GE40-XL-KRR-BUS$28.36
| Spec | Price | Quantity |
|---|---|---|
| ina:GE40-XL-KRR-B | US$28.36 |
In stockEstimated delivery: 16 Jun 2026 (domestic stock)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Radial Insert Ball Bearing
- Dimensions
- 40x80x42.9mm
Overview
INA GE40-XL-KRR-B Radial Insert Ball Bearing is an easy-mount ball bearing used in housing units or directly fixed on shafts. Based on deep groove ball bearing geometry, it adds locking devices and seals to simplify maintenance in agricultural machines, conveyors, fans, and handling equipment.
A spherical outer ring and shaft-locking device allow the bearing to compensate for static misalignment when combined with a matching housing. Sealed and lubricated variants are suitable for dusty or wet operating environments.
Key features
- Easy shaft mounting with locking device
- Misalignment compensation with matched housings
- Sealed designs for contaminated environments
- Simple replacement and maintenance
Typical applications
- Conveyor rollers
- Agricultural and food machinery
- Fans and blowers
- Packaging and handling equipment
Selection guidance
Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.
| Code | Description |
|---|---|
| 23,5 mm | Sealing type |
