INA
Drawn cup roller bearing
Needle Roller Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
INA HK1010 Needle Roller Bearing is a compact bearing designed to carry high radial load within a small cross-section. It is suitable for gearboxes, automotive transmissions, industrial links, and pivot positions where space saving and load capacity are both required.
Long, small-diameter rollers are arranged in a cage or full-complement design. Versions with or without inner rings are available, and shaft hardness and surface finish are critical when the shaft is used as the raceway.
Check mounting envelope, inner ring requirement, shaft surface hardness, lubrication, load, and speed range.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.00376 kg | Weight |
| Cr | 4.400 N | Basic dynamic load rating, radial |
| C0r | 5.100 N | Basic static load rating, radial |
| Cur | 670 N | Fatigue load limit, radial |
| nG | 24.300 1/min | Limiting speed |
| nϑr | 18.700 1/min | Reference speed |

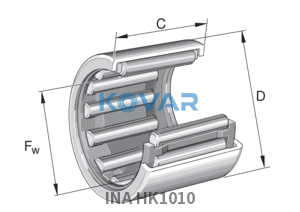

| Symbol | Value | Description |
|---|---|---|
| d | 10 mm | Bore diameter |
| D | 14 mm | Outside diameter |
| B | 10 mm | Width |
| r1, 2 min | 0,4 mm | Minimum chamfer dimension |
| H | Without | Lubrication hole diameter |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
| Code | Description |
|---|---|
| GR10X14X3 | Sealing type |
| Without | Lubricant |
