INA
Stud Type Track Roller
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

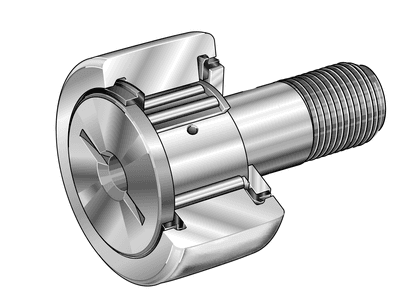

INA KR19-PP-A Stud Type Track Roller is a cam follower with an integrated stud and bearing outer ring. It mounts without a separate shaft, saving space while supporting repeated loads in cams, guide rails, and automated handling equipment.
Needle or cylindrical rollers run inside a thick outer ring, while a threaded stud acts as the shaft. Options such as eccentric studs, seals, and lubrication holes improve adjustment and maintenance.
Check stud diameter and thread, outer ring profile, eccentric adjustment need, load, speed, and lubrication.
| Symbol | Value | Description |
|---|---|---|
| D | 19 mm | Outside diameter |
| d1 | 8 mm | Fit diameter of roller stud / stud |
| B | 32 mm | Width of the roller stud |
| Cr w | 3.550 N | Basic dynamic load rating, radial |
| C0r w | 4.100 N | Basic static load rating, radial |
| Cur w | 560 N | Fatigue load limit, radial |
| nD G | 11.000 1/min | Speed on permanent grease lubrication |
| ≈m | 27,949 g | Weight |
| Symbol | Value | Description |
|---|---|---|
| B1 | 12,2 mm | Maximum witdh of thrust washer |
| B2 | 20 mm | Bolt/stud length effectively |
| C | 11 mm | Width, outer ring |
| C1 | 0,6 mm | Protrusion outer ring to thrust washer |
| rmin | 0,15 mm | Minimum chamfer dimension |
| d2 | 15 mm | Stop diameter of thrust washer |
| G | M8 | Thread |
| IG | 10 mm | Thread length |
| Item | Code | Description |
|---|---|---|
| Sealing | PP | Three-stage sealing by plastic axial plain washer on both sides |
| Outer ring profile | IOP | Optimized INA-profile |
| Grease nipples | 1x | Drive-fit lubrication nipple unmounted 1x |
| Relubrication facility | K | Via head |
| Assembling aid head | SL | Mounting slot |
| Code | Description |
|---|---|
| NIPA1 | Drive-fit lubrication nipple |
| 1,5 mm | Protrusion lubrication nipple |
| 8 Nm | Tightening torque nut |
