| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.043037 kg | Weight |
| Cr | 4.500 N | Basic dynamic load rating, radial |
| C0r | 5.400 N | Basic static load rating, radial |
| Cur | 740 N | Fatigue load limit, radial |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
INA

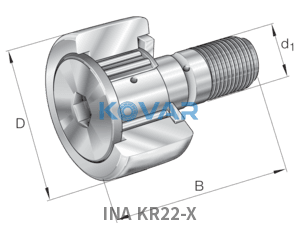

INA KR22-X Stud type track rollers 10 × 22 × 36 mm
Stud Type Track Roller
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Stud Type Track Roller
- Bore
- 10 mm mm
- Outer Ø
- 22 mm mm
- Width
- 36 mm mm
Overview
INA KR22-X Stud Type Track Roller is a cam follower with an integrated stud and bearing outer ring. It mounts without a separate shaft, saving space while supporting repeated loads in cams, guide rails, and automated handling equipment.
Needle or cylindrical rollers run inside a thick outer ring, while a threaded stud acts as the shaft. Options such as eccentric studs, seals, and lubrication holes improve adjustment and maintenance.
Key features
- Integrated stud for simple mounting
- Thick outer ring for cam and track contact
- Handles repeated shock loads
- Eccentric versions allow position adjustment
Typical applications
- Cam follower mechanisms
- Automated transfer rails
- Packaging and printing machines
- Lifts, doors, and guide systems
Selection guidance
Check stud diameter and thread, outer ring profile, eccentric adjustment need, load, speed, and lubrication.
| Symbol | Value | Description |
|---|---|---|
| d | 10 mm | Bore diameter |
| D | 22 mm | Outside diameter |
| B | 36 mm | Width |
| r1, 2 min | 0,3 mm | Minimum chamfer dimension |
| Code | Description |
|---|---|
| SPSP | Sealing type |
| Standard bearing steel | Material |
| Sheet steel cage | Cage |
