INA

INA NUKR72-A Stud Type Track Roller

Stud Type Track Roller

From US$50.59

Excl. VAT

ina:NUKR72-AUS$50.59

In stockEstimated delivery: 20 Jun 2026 (domestic stock)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Stud Type Track Roller

Overview

INA NUKR72-A Stud Type Track Roller is a cam follower with an integrated stud and bearing outer ring. It mounts without a separate shaft, saving space while supporting repeated loads in cams, guide rails, and automated handling equipment.

Needle or cylindrical rollers run inside a thick outer ring, while a threaded stud acts as the shaft. Options such as eccentric studs, seals, and lubrication holes improve adjustment and maintenance.

Key features

Integrated stud for simple mounting
Thick outer ring for cam and track contact
Handles repeated shock loads
Eccentric versions allow position adjustment

Typical applications

Cam follower mechanisms
Automated transfer rails
Packaging and printing machines
Lifts, doors, and guide systems

Selection guidance

Check stud diameter and thread, outer ring profile, eccentric adjustment need, load, speed, and lubrication.

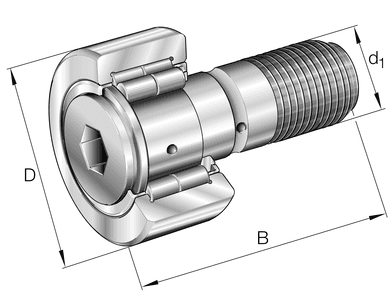

Symbol	Value	Description
D	72 mm	Outside diameter
d₁	24 mm	Fit diameter of roller stud / stud
B	80 mm	Width
C_{r w}	45.500 N	Basic dynamic load rating, radial
C_{0r w}	65.000 N	Basic static load rating, radial
C_{ur w}	8.900 N	Fatigue load limit, radial
n_{D G}	2.600 1/min	Speed on permanent grease lubrication
F_{0r per}	62.000 N	Permissible static load, radial
F_{r per}	31.500 N	Permissible dynamic load outer ring, radial
≈m	0,986 kg	Weight

Symbol	Value	Description
B₁	30,6 mm	Witdh of thrust washer
B₂	49,5 mm	Bolt/stud length effectively
B₃	11 mm	Distance to lubrication hole
C	28 mm	Width, outer ring
C₁	1,3 mm	Protrusion outer ring to thrust washer
r_min	1,1 mm	Minimum chamfer dimension
d₂	44 mm	Stop diameter of thrust washer
d₃	4 mm	Diameter lubrication hole
G	M24X1,5	Thread
I_G	25 mm	Thread length
W	14 mm	Width of flats

Item	Code	Description
Sealing	2LB	Labyrinth seals on both sides
Outer ring profile	IOP	Optimized INA-profile
Grease nipples	2x	Drive-fit lubrication nipple unmounted 2x
Relubrication facility	KSP	Via head, stud and fit
Assembling aid head	I6	Hexagon socket
Mounting aid	I6	Hexagon socket

Radial load
Axial load in one direction
Axial load in two directions
Grease Lubrication
Oil Lubrication
Not sealed

Code	Description
NIPA3X9,5	Drive-fit lubrication nipple
220 Nm	Tightening torque nut

datasheet pdf download
