INA
Flanged Housing Unit
From US$161.21
Excl. VAT| Spec | Price | Quantity |
|---|---|---|
| ina:RME40-XL-N | US$161.21 |
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

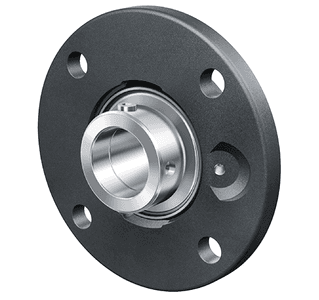

INA RME40-XL-N Flanged Housing Unit is a ready-to-mount bearing unit combining an insert bearing with a flanged housing. It bolts to machine side frames to support shafts and is well suited to conveyors, fans, and agri-food equipment where installation and replacement speed matter.
A radial insert ball bearing is matched with a cast iron or sheet steel housing. Two-bolt, four-bolt, and round flange styles can be selected according to mounting space and load direction.
Verify flange style, bolt pitch, shaft diameter, housing material, seal specification, and relubrication method.
| Symbol | Value | Description |
|---|---|---|
| d | 40 mm | Bore diameter |
| H | 145 mm | Height flange |
| B1 | 56.5 mm | Locking collar total width |
| U | 33.9 mm | Total height unit |
| Cr | 34,500 N | Basic dynamic load rating, radial |
| C0r | 19,800 N | Basic static load rating, radial |
| Cur | 840 N | Fatigue load limit, radial |
| ≈m | 1.73 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| A | 23 mm | Height housing |
| A1 | 11.5 mm | Thickness of flange |
| A2 | 1 mm | Distance raceway |
| S | 2 mm | Chamfer width |
| Q | M6 | Connection thread for lubrication |
| Item | Code | Description |
|---|---|---|
| Groove | N | Cast iron housing with undercut slot for end caps |
| Material | GG | Grey cast iron |
| Symbol | Value | Description |
|---|---|---|
| J | 120 mm | Pitch circle diameter (holes) |
| N | 11.5 mm | Fixing bore |
| Z | 100 mm | Diameter spigot |
| h8 | Diameter spigot clearance | |
| n | 4 | Number of screwing holes |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
| Code | Description |
|---|---|
| 1 | Number of housings |
| GG.ME08 | Housing |
| GE40-XL-KRR-B | Bearing designation |
| KASK08 | Protecting cap |
