INA
Cylindrical Roller Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

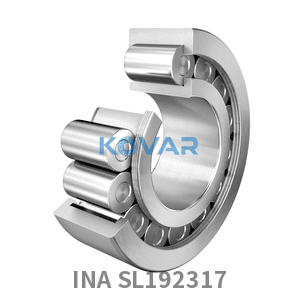

INA SL192317 Cylindrical Roller Bearing is designed for high radial load capacity through line contact between rollers and raceways. It is suitable for rigid, heavy-duty applications such as motors, gearboxes, rolling mills, and machine tools, with N, NU, NJ, and NUP designs offering different axial locating functions.
Cylindrical rollers and a cage are arranged between inner and outer ring raceways. Depending on flange configuration, the bearing can be separable and may support axial load in one or both directions.
Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 7,152 kg | Weight |
| Cr | 500.000 N | Basic dynamic load rating, radial |
| C0r | 610.000 N | Basic static load rating, radial |
| Cur | 88.000 N | Fatigue load limit, radial |
| nG | 2.410 1/min | Limiting speed |
| nϑr | 1.710 1/min | Reference speed |
| Symbol | Value | Description |
|---|---|---|
| d | 85 mm | Bore diameter |
| D | 180 mm | Outside diameter |
| B | 60 mm | Width |
| D1 | 150,9 mm | Shoulder diameter, outer ring |
| d1 | 118,2 mm | Shoulder diameter, inner ring |
| r1, 2 min | 3 mm | Minimum chamfer dimension |
| Symbol | Value | Description |
|---|---|---|
| Da max | 150,5 mm | Max. shoulder diameter for mounting, housing |
| da min | 107 mm | Min. shoulder diameter for mounting, inner ring |
| ra max | 3 mm | Max. fillet radius |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
| Code | Description |
|---|---|
| None, full complement bearing | Cage |
| Tolerance class P0/PN2 / ABEC 1 | Tolerance class |
