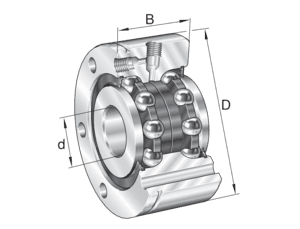

INA ZKLF2068-2RS-PE Axial Angular Contact Ball Bearing 20 × 68 × 28 mm

Angular Contact Ball Bearings

Axial Angular Contact Ball Bearing

From US$205.67

Excl. VAT

ina:ZKLF2068-2RS-PEUS$205.67

In stockEstimated delivery: 17 Jun 2026 (domestic stock)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Axial Angular Contact Ball Bearing
Dimensions: 20x68x28mm

Overview

INA ZKLF2068-2RS-PE Axial Angular Contact Ball Bearing is a precision bearing for screw drives and spindle support positions requiring accurate axial location and high rigidity. It provides low friction and repeatable positioning in ball screws, lead screws, and machine tool feed axes.

The design uses balls with a large contact angle, precision raceways, and controlled preload. Flanged or cylindrical outer-ring styles such as ZKLF and ZKLN can be selected according to the mounting interface.

Key features

High axial rigidity and positioning accuracy
Low friction for precision feed motion
Preload reduces backlash
Optimized for ball screw support

Typical applications

Ball screw support bearings
Machine tool feed axes
Precision linear actuators
Semiconductor and automation equipment

Selection guidance

Select by screw shaft diameter, preload, precision class, flange requirement, speed, and target positioning accuracy.

Symbol	Value	Description
d	20 mm	Bore diameter
	0 mm	Bore diameter upper tolerance
	-0,01 mm	Bore diameter lower tolerance
D	68 mm	Outside diameter
	0 mm	Outside diameter upper tolerance
	-0,013 mm	Outside diameter lower tolerance
B	28 mm	Width
	0 mm	Width upper tolerance
	-0,25 mm	Width lower tolerance
C_a	26.000 N	Basic dynamic load rating, axial
C_0a	47.000 N	Basic static load rating, axial
C_ua	2.130 N	Fatigue load limit, axial
n_{G Grease}	6.600 1/min	Limiting speed for grease lubrication
n_ϑ	3.000 1/min	Thermally safe operating speed
M_R	0,3 Nm	Bearing frictional torque
≈m	0,594 kg	Weight

Symbol	Value	Description
d₁	34,5 mm	Rib diameter inner ring
r_min	0,3 mm	Minimum chamfer dimension
r_{1 min}	0,6 mm	Minimum chamfer dimension
J	53 mm	Pitch circle diameter fixing holes
d₂	6,8 mm	Fixing holes diameter
b	3 mm	Width of extraction slot
I	19 mm	Distance of extraction slot
n	8	Pitch quantity of fixing holes
t	45 °	Pitch separation angle of fixing holes
a	60 °	Contact angle

Item	Code	Description
Sealing	2RS	Contact lip seals on both sides
Tolerance class	PE	Less stringent bearing design

Symbol	Value	Description
D_{a max}	43 mm	Maximum diameter of housing
d_{a min}	25 mm	Minimum diameter shaft
t₁	0,1 mm	Position tolerance of bore in the housing
	M6	Size of fixing screws
n_a	4	Number of holes in adjacent construction
t_a	90 °	Pitch separation angle of holes in adjacent construction
	M6	Connection thread for lubrication

Symbol	Value	Description
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Radial load
Axial load in one direction
Axial load in two directions
Lifetime lubrication, freedom from maintenance
Grease Lubrication
Sealed on both sides

Code	Description
650 N/µm	Rigidity axial
140 Nm/mrad	Tilting rigidity
0,273 kg*cm2	Mass moment of inertia
5 µm	Axial runout
ZM20	Recommended INA precision locknut for radial locking
AM20	Recommended INA precision locknut for axial locking
18 Nm	Tightening torque for the recommended INA precision locknut
8.258 N	Required locknut force axial
