| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.12 kg | Weight |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
NADELLA

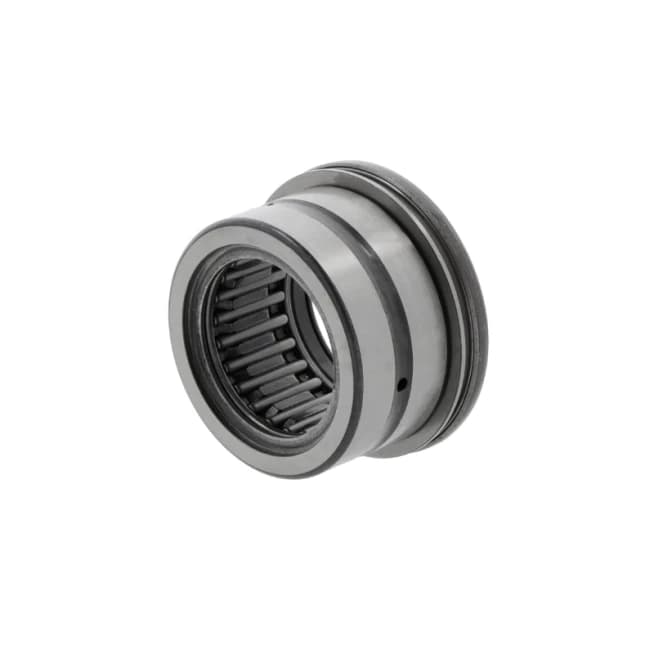

Nadella RAXN425 Needle Roller / Axial Cylindrical Roller Bearing 25 × 37 × 24 mm
Needle Roller / Axial Cylindrical Roller Bearing
From US$189.12
Excl. VATnadella:RAXN425US$189.12
| Spec | Price | Quantity |
|---|---|---|
| nadella:RAXN425 | US$189.12 |
In stockEstimated delivery: 8 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Needle Roller / Axial Cylindrical Roller Bearing
- Bore
- 25 mm mm
- Outer Ø
- 37 mm mm
- Width
- 24 mm mm
Overview
NADELLA RAXN425 Needle Roller / Axial Cylindrical Roller Bearing combines radial needle rollers with an axial cylindrical roller thrust section for high axial load capacity. It suits gearboxes, screw supports, and machine tools requiring high axial rigidity in restricted space.
The needle roller section supports radial load, while the axial cylindrical roller section supports high thrust load. Precision variants such as ZARF use flange and bolt features for screw-drive positioning.
Key features
- Supports radial and high axial loads together
- High axial rigidity
- Compact combined bearing structure
- Applicable to precision screw supports
Typical applications
- Industrial gearboxes
- Ball screw and lead screw supports
- Machine tool feed axes
- Compact high-load drives
Selection guidance
Review axial load, rigidity requirement, washer/flange configuration, lubrication, precision, and available mounting space.
| Symbol | Value | Description |
|---|---|---|
| d | 25 mm | Bore diameter |
| D | 37 mm | Outside diameter |
| B | 24 mm | Width |
| Symbol | Value | Description |
|---|---|---|
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
| Code | Description |
|---|---|
| P0 | Tolerance class |
| Sheet steel cage | Cage |
| Standard bearing steel | Material |
